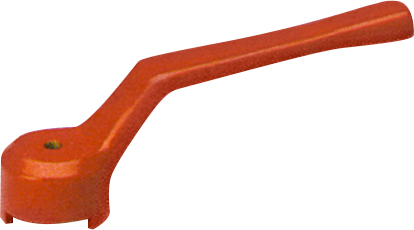

Operating handle for valve/tap
Code
MC000003Version
3
Group
Hydronic - Valves and control components (MG000042)Release
Drawing
Features
01 | E | Width (mm) EF000008 - Numeric | |
02 | h1 | Axle height (mm) EF020195 - Numeric | |
03 | h2 | Offset height handle (mm) EF010518 - Numeric | |
04 | M1 | Shaft distance 1 operating element (mm) EF010480 - Numeric | |
05 | M2 | Shaft distance 2 operating element (mm) EF010487 - Numeric | |
06 | Y | Height (mm) EF000040 - Numeric |
Related productclasses
Synonyms
Operating handle for valve/tap
