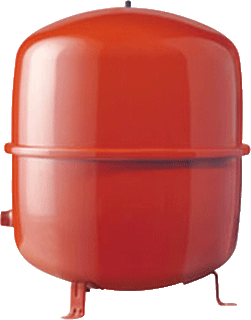

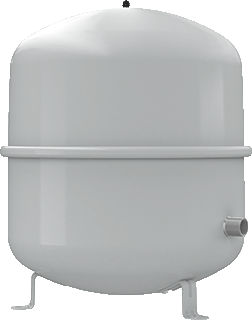

Membrane pressure expansion vessel vertical with legs - side connection

Code

MC000036

Hydronic - Pressurisation and expansion (MG000033)

Drawing

Features

01		Vertical positioning EF021399 - Logical
02		With legs EF022185 - Logical
05	C	Outer radius support (mm) EF010706 - Numeric
06	D	Diameter (mm) EF000551 - Numeric
10	Dc	Diameter expansion vessel seamed joint (mm) EF010707 - Numeric
14	H	Height (mm) EF000040 - Numeric
15	H1	Distance to centre connection (mm) EF010708 - Numeric
16	Hc	Distance to flanged rim (mm) EF010709 - Numeric

Features port 1

03	a1	Angle to first bolt hole (°) EF010524 - Numeric
04	b1	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
07	D1	Outer diameter of flange (mm) EF021531 - Numeric
08	d2-1	Diameter bolt hole (mm) EF021780 - Numeric
09	d4-1	Diameter sealing edge (mm) EF010527 - Numeric
11	DN1	Nominal diameter expansion connection EF022359 - Alphanumeric
12	Do1	Outer pipe diameter, expansion connection (mm) EF022360 - Numeric
13	f1	Thickness sealing edge (mm) EF010528 - Numeric
17	k1	Pitch circle (mm) EF021643 - Numeric
18	L1	Connection length (mm) EF022519 - Numeric
19	n1	Number of bolt holes EF021779 - Numeric
20	P1	Sleeve length (mm) EF010520 - Numeric
21	Q1	Length gusset/thread (mm) EF010521 - Numeric
22	s1	Wall thickness connection (mm) EF010546 - Numeric
23		Connection EF000443 - Alphanumeric

Related productclasses

Synonyms

Membrane pressure expansion vessel

Membrane pressure expansion vessel - side connection

Membrane pressure expansion vessel vertical with legs - side connection
