Membrane pressure expansion vessel EC010958

Published
Pressure increase/decrease EG015260

Features 28

  1. 1

    Suitable for central heatingEF011110

    Yes or no

    YesNo
  2. 2

    Suitable for coolingEF024798

    Yes or no

    YesNo
  3. 3

    Suitable for tap waterEF021265

    Yes or no

    YesNo
  4. 4

    VolumeEF000880

    A number in l

  5. 5

    Pre-pressureEF020016

    A number in bar

  6. 6

    Max. operating pressureEF020449

    A number in bar

  7. 7

    Medium temperature (continuous)EF023182

    A range, from and to, in °C

  8. 8

    With fixed wall supportEF022371

    Yes or no

    YesNo
  9. 9

    Vertical positioningEF021399

    Yes or no

    YesNo
  10. 10

    Horizontal positioningEF009883

    Yes or no

    YesNo
  11. 11

    With legsEF022185

    Yes or no

    YesNo
  12. 12

    With exchangeable membraneEF022362

    Yes or no

    YesNo
  13. 13

    Nominal diameter expansion connectionEF022359

    Choose one value

    3/8 inch (10)DN 101/2 inch (15)DN 153/4 inch (20)DN 201 inch (25)DN 251 1/4 inch (32)DN 32
  14. 14

    Outer pipe diameter, expansion connectionEF022360

    A number in mm

  15. 15

    ConnectionEF000443

    Choose one value

    Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread metricInternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metric
  16. 16

    Material membrane/bladderEF015310

    Choose one value

    Isobutylene isoprene rubber (IIR, butyl rubber)Polychloroprene (CR)TPOStyrene butadiene rubber (SBR)Nitrile rubber (NBR)Ethylene-propylene diene monomer rubber (EPDM)Other
  17. 17

    Flange pressure ratingEF020149

    Choose one value

    PN 2.5PN 6PN 10PN 16PN 25PN 40PN 63PN 100PN 160PN 250
  18. 18

    With vessel manifoldEF015897

    Yes or no

    YesNo
  19. 19

    ColourEF000007

    Choose one value

    BlueGreenGreyRedStainless steelWhiteOther
  20. 20

    With drainEF020592

    Yes or no

    YesNo
  21. 21

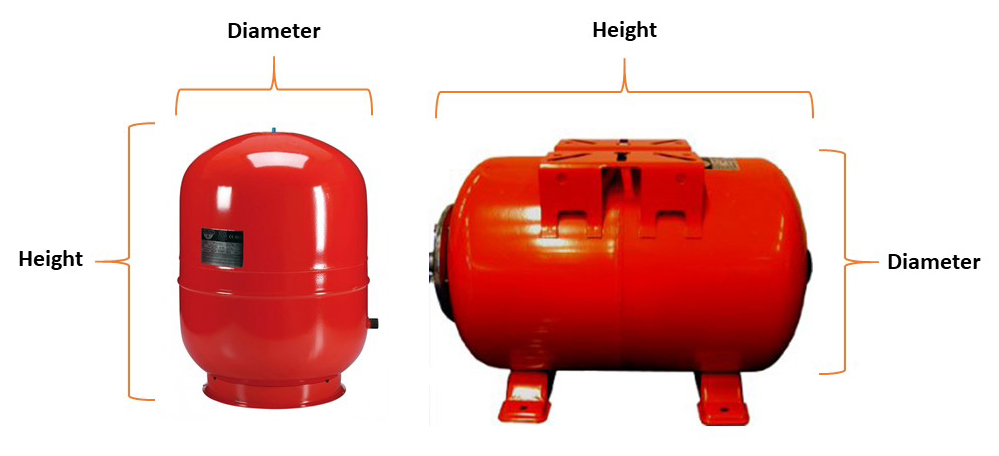

    DiameterEF000551

    A number in mm

  22. 22

    HeightEF000040

    A number in mm

  23. 23

    With pressure gaugeEF002223

    Yes or no

    YesNo
  24. 24

    With safety valveEF002222

    Yes or no

    YesNo
  25. 25

    Opening pressure safety valveEF015898

    A number in bar

  26. 26

    With mounting materialEF006009

    Yes or no

    YesNo
  27. 27

    Max. glycol mixtureEF015709

    A number in %

  28. 28

    Max. ethanol mixtureEF015710

    A number in %

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
