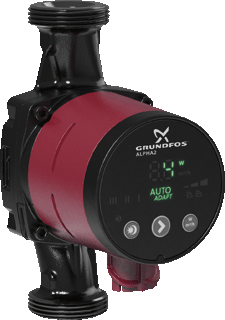

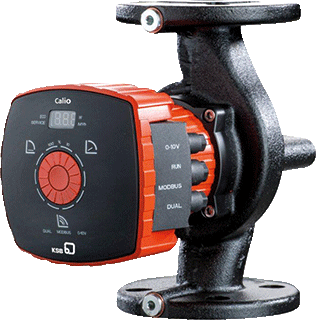

Built-in circulation pump (control panel top side)
Code
MC000045Version
Group
Hydronic - Circulation pumps (MG000034)Release
Drawing
Features
17 | DM | Diameter motor (mm) EF010724 - Numeric | |
24 | H | Pump height (mm) EF023086 - Numeric | |
25 | HD | Diameter pump housing (mm) EF010740 - Numeric | |
30 | Le1 | Height pump housing (mm) EF010741 - Numeric | |
31 | Le2 | Centre connection to end motor (mm) EF010742 - Numeric | |
32 | Le3 | Thickness electrical cabinet (mm) EF010750 - Numeric | |
33 | Le4 | Width electrical cabinet (mm) EF010751 - Numeric | |
34 | Le6 | Length electrical cabinet left (mm) EF010752 - Numeric | |
35 | Le7 | Length electrical cabinet right (mm) EF010753 - Numeric | |
36 | Lp | Position control panel EF010733 - Alphanumeric |
Features port 1
01 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
03 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
05 | C1-1 | Height screw gland 1 (mm) EF010702 - Numeric | |
07 | C2-1 | Height screw gland 2 (mm) EF010703 - Numeric | |
09 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
11 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
13 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
15 | DG1 | Connection size pump housing EF025225 - Alphanumeric | |
18 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
20 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
22 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
26 | k1 | Pitch circle (mm) EF021643 - Numeric | |
28 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
37 | n1 | Number of bolt holes EF021779 - Numeric | |
39 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
41 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
43 | SW1-1 | Wrench width 1 (mm) EF010807 - Numeric | |
45 | SW2-1 | Wrench width 2 (mm) EF010808 - Numeric | |
47 | Z1 | Working length (mm) EF006318 - Numeric | |
49 | Connection EF000443 - Alphanumeric |
Features port 2
02 | a2 | Angle to first bolt hole (°) EF010524 - Numeric | |
04 | b2 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
06 | C1-2 | Height screw gland 1 (mm) EF010702 - Numeric | |
08 | C2-2 | Height screw gland 2 (mm) EF010703 - Numeric | |
10 | D2 | Outer diameter of flange (mm) EF021531 - Numeric | |
12 | d2-2 | Diameter bolt hole (mm) EF021780 - Numeric | |
14 | d4-2 | Diameter sealing edge (mm) EF010527 - Numeric | |
16 | DG2 | Connection size pump housing EF025225 - Alphanumeric | |
19 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
21 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
23 | f2 | Thickness sealing edge (mm) EF010528 - Numeric | |
27 | k2 | Pitch circle (mm) EF021643 - Numeric | |
29 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
38 | n2 | Number of bolt holes EF021779 - Numeric | |
40 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
42 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
44 | SW1-2 | Wrench width 1 (mm) EF010807 - Numeric | |
46 | SW2-2 | Wrench width 2 (mm) EF010808 - Numeric | |
48 | Z2 | Working length (mm) EF006318 - Numeric | |
50 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Built-in circulation pump
Built-in circulation pump (control panel top side)
