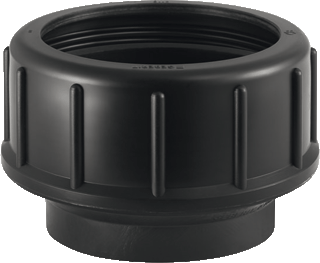

Screw coupling (plastic welded end)
Code
MC000051Version
3
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
02 | Model EF000010 - Alphanumeric | ||
08 | H | Height screw gland (mm) EF010040 - Numeric | |
11 | Le1 | Length to gland nut (mm) EF010764 - Numeric |
Features port 1
03 | D1 | Diameter gland nut (mm) EF010760 - Numeric | |
04 | DN1 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
06 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
09 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
12 | s1 | Wall thickness, connection 1 (mm) EF021603 - Numeric | |
15 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
17 | Connection 1 EF000321 - Alphanumeric |
Features port 2
05 | DN2 | Nominal diameter connection 2 EF020052 - Alphanumeric | |
07 | Do2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
10 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
13 | s2 | Wall thickness, connection 2 (mm) EF021604 - Numeric | |
14 | W2 | Fusion length (mm) EF010761 - Numeric | |
16 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
18 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Fitting with 2 connections
Screw coupling (plastic welded end)
