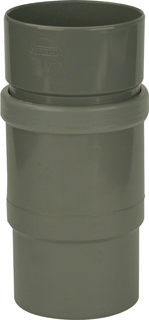

Plastic expansion sleeve

Code

MC000052

Version

Group

Piping - Pipe fittings, flanges and adaptors (MG000023)

Release

Drawing

Features

	05	Dr	Rim diameter (mm) EF010037 - Numeric
	07	j	Distance to sleeve rim (mm) EF010547 - Numeric
	16	t	Rim thickness (mm) EF010038 - Numeric

Features port 1

	01	DN1	Nominal diameter EF023191 - Alphanumeric
	03	Do1	Outer pipe diameter (mm) EF006272 - Numeric
	06	Dr1	Rim diameter (mm) EF010037 - Numeric
	08	j1	Distance to edge (mm) EF010519 - Numeric
	10	L1	Connection length (mm) EF022519 - Numeric
	12	P1	Sleeve length (mm) EF010520 - Numeric
	14	s1	Wall thickness connection (mm) EF010546 - Numeric
	17	t1	Rim thickness (mm) EF010038 - Numeric
	19	Z1	Working length (mm) EF006318 - Numeric
	21		Connection EF000443 - Alphanumeric

Features port 2

	02	DN2	Nominal diameter EF023191 - Alphanumeric
	04	Do2	Outer pipe diameter (mm) EF006272 - Numeric
	09	k2	Max. shorten length (mm) EF010767 - Numeric
	11	L2	Connection length (mm) EF022519 - Numeric
	13	Q2	Length gusset/thread (mm) EF010521 - Numeric
	15	s2	Wall thickness connection (mm) EF010546 - Numeric
	18	W2	Fusion length (mm) EF010761 - Numeric
	20	Z2	Working length (mm) EF006318 - Numeric
	22		Connection EF000443 - Alphanumeric

Related productclasses

Synonyms

Plastic expansion sleeve
