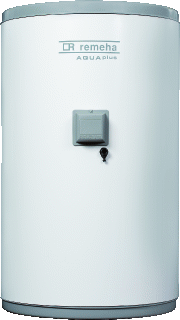

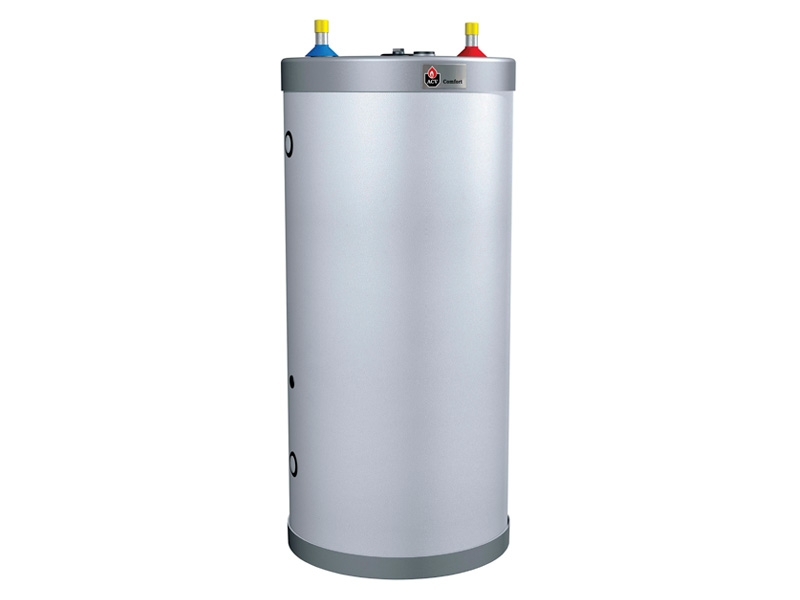

Boiler round indirectly heated (floor positioning, top connection)
Water heaters and buffer vessels. Boiler indirectly fired round floor model top connection; Boiler round indirectly heated (floor positioning, top connection); Boiler, indirectly fired
Code:
MC000060
Version:
Group:
Water heaters and buffer vessels
Drawing
Features
01 |
Vertical positioning | ||
02 |
a |
Angle (°) | |
03 |
D |
Diameter (mm) | |
04 |
H |
Height (mm) | |
05 |
H1 |
Height foot (mm) | |
06 |
H2 |
Height operating element (mm) | |
07 |
n |
Number of legs | |
08 |
r1 |
Radius support (mm) |
Features port 1
09 |
Primary connection | ||
10 |
C1 |
Height screw gland (mm) | |
11 |
DN1 |
Nominal diameter primary connection | |
12 |
Do1 |
Outer pipe diameter primary connection (mm) | |
13 |
Dr1 |
Rim diameter (mm) | |
14 |
dx1 |
Length to connection (mm) | |
15 |
dy1 |
Width to connection (mm) | |
16 |
g1 |
Height screw gland edge (mm) | |
17 |
L1 |
Connection length (mm) | |
18 |
P1 |
Sleeve length (mm) | |
19 |
Q1 |
Length gusset/thread (mm) | |
20 |
s1 |
Wall thickness connection (mm) | |
21 |
SLW1 |
Wrench width (mm) |
Features port 2
22 |
Cold tap water connection | ||
23 |
C2 |
Height screw gland (mm) | |
24 |
DN2 |
Nominal diameter cold tap water | |
25 |
Do2 |
Outer pipe diameter cold tap water (mm) | |
26 |
Dr2 |
Rim diameter (mm) | |
27 |
dx2 |
Length to connection (mm) | |
28 |
dy2 |
Width to connection (mm) | |
29 |
g2 |
Height screw gland edge (mm) | |
30 |
L2 |
Connection length (mm) | |
31 |
P2 |
Sleeve length (mm) | |
32 |
Q2 |
Length gusset/thread (mm) | |
33 |
s2 |
Wall thickness connection (mm) | |
34 |
SLW2 |
Wrench width (mm) |
Features port 3
35 |
Hot tap water connection | ||
36 |
C3 |
Height screw gland (mm) | |
37 |
DN3 |
Nominal diameter hot tap water | |
38 |
Do3 |
Outer pipe diameter hot tap water (mm) | |
39 |
Dr3 |
Rim diameter (mm) | |
40 |
dx3 |
Length to connection (mm) | |
41 |
dy3 |
Width to connection (mm) | |
42 |
g3 |
Height screw gland edge (mm) | |
43 |
L3 |
Connection length (mm) | |
44 |
P3 |
Sleeve length (mm) | |
45 |
Q3 |
Length gusset/thread (mm) | |
46 |
s3 |
Wall thickness connection (mm) | |
47 |
SLW3 |
Wrench width (mm) |
Features port 4
48 |
Primary connection | ||
49 |
C4 |
Height screw gland (mm) | |
50 |
DN4 |
Nominal diameter primary connection | |
51 |
Do4 |
Outer pipe diameter primary connection (mm) | |
52 |
Dr4 |
Rim diameter (mm) | |
53 |
dx4 |
Length to connection (mm) | |
54 |
dy4 |
Width to connection (mm) | |
55 |
g4 |
Height screw gland edge (mm) | |
56 |
L4 |
Connection length (mm) | |
57 |
P4 |
Sleeve length (mm) | |
58 |
Q4 |
Length gusset/thread (mm) | |
59 |
s4 |
Wall thickness connection (mm) | |
60 |
SLW4 |
Wrench width (mm) |
Features port 5
61 |
dx5 |
Length to connection (mm) | |
62 |
dy5 |
Width to connection (mm) |
Synonyms
Boiler indirectly fired round floor model top connection
Boiler round indirectly heated (floor positioning, top connection)
Boiler, indirectly fired
