Abzweig rechteckiger Luftkanal
Code
MC000071Version
3
Group
Luftkanäle (MG000003)Release

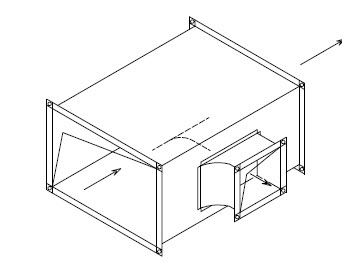

Drawing
Features
01 | a | Krümmung Abzweigung Hauptkanal (°) EF020944 - Numeric | |
06 | s | Plattenstärke (mm) EF006112 - Numeric |
Features port 1
03 | FH1 | Höhe Flansch (mm) EF010695 - Numeric | |
04 | HN1 | Nennhöhe Kanal (mm) EF020313 - Numeric | |
05 | L1 | Länge (mm) EF001438 - Numeric | |
07 | WN1 | Nennbreite Kanal (mm) EF020312 - Numeric | |
08 | Z1 | Arbeitslänge (mm) EF006318 - Numeric | |
09 | Anschluss EF000443 - Alphanumeric |
Features port 2
02 | f2 | Breite Flansch auf Hauptkanal (mm) EF010832 - Numeric |
Related productclasses
Synonyms
Abzweig rechteckiger Luftkanal
