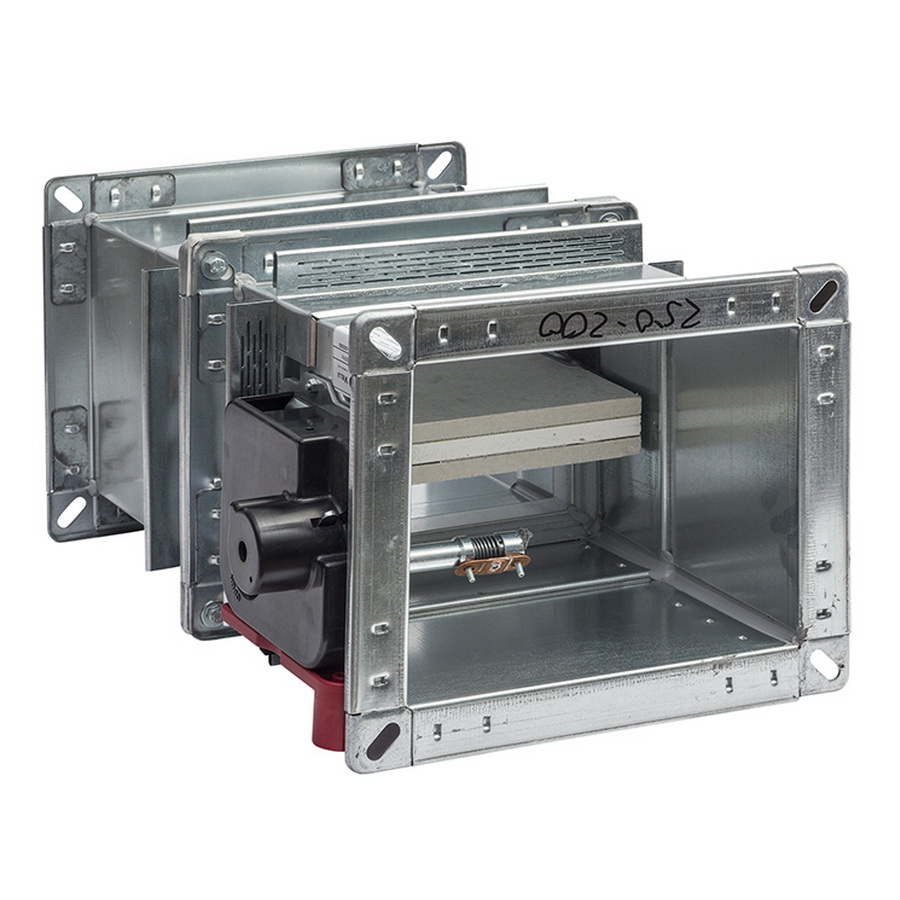

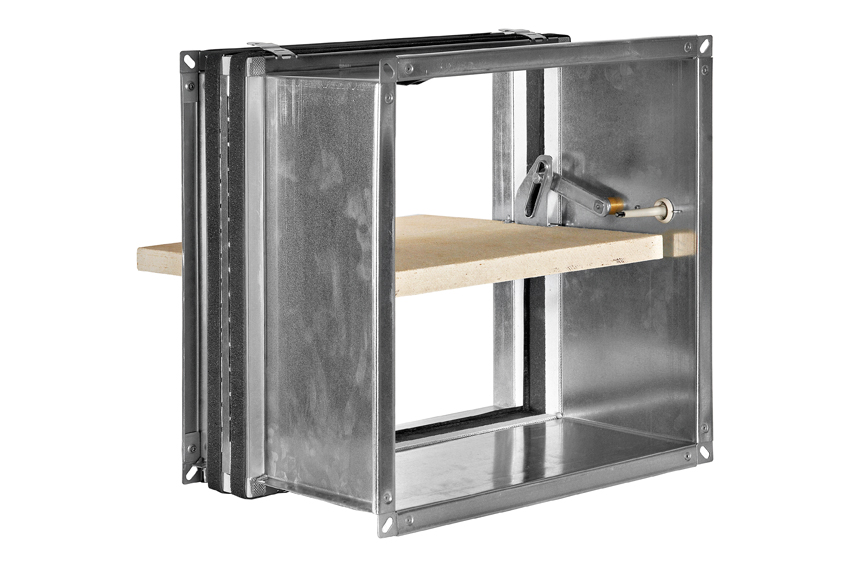

Damper, fire, air duct, rectangular
MC000077 / v2
Code
MC000077Version
2
Group
Ventilation and flue gas components (MG000043)Release
1 / 2
Drawing
Features
01 | Operation EF002147 - Alphanumeric | ||
02 | CD | Depth of control element (mm) EF010834 - Numeric | |
03 | CH | Height operating element (mm) EF022273 - Numeric | |
04 | CW | Width operating element (mm) EF010479 - Numeric | |
05 | Ex | Distance to operating element (mm) EF010523 - Numeric | |
06 | FH | Height flange (mm) EF010695 - Numeric | |
11 | L | Length (mm) EF001438 - Numeric | |
12 | s | Plate thickness (mm) EF006112 - Numeric |
Features port 1
07 | FH1 | Height flange (mm) EF010695 - Numeric | |
09 | HN1 | Nominal duct height (mm) EF020313 - Numeric | |
13 | WN1 | Nominal duct width (mm) EF020312 - Numeric | |
15 | Z1 | Drive section length (mm) EF022244 - Numeric | |
17 | Connection 1 EF000321 - Alphanumeric |
Features port 2
08 | FH2 | Height flange (mm) EF010695 - Numeric | |
10 | HN2 | Nominal duct height (mm) EF020313 - Numeric | |
14 | WN2 | Nominal duct width (mm) EF020312 - Numeric | |
16 | Z2 | Built-in section length (mm) EF022245 - Numeric | |
18 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Damper, fire, air duct, rectangular
Fire damper
Fire damper, rectangular
Fire protection damper
Fire shut-off damper
Rectangular fire damper
