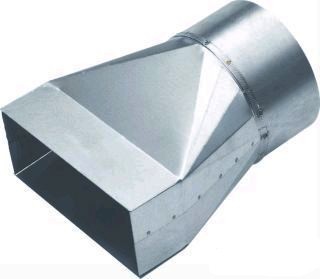

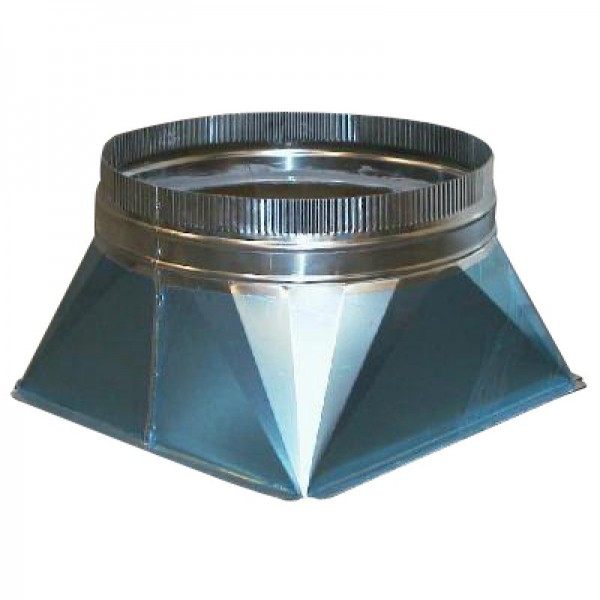

Transition piece, rectangular/round air duct
Code
MC000084Version
1
Group
Ventilation - Ducts and duct fittings (MG000003)Release
Drawing
Features
01 | Design form EF022659 - Alphanumeric | ||
04 | Ey | Distance 1 eccentricity (mm) EF010836 - Numeric | |
05 | Ez | Distance 2 eccentricity (mm) EF010837 - Numeric | |
13 | s | Plate thickness (mm) EF006112 - Numeric |
Features port 1
03 | Ext1 | Port extension (mm) EF010828 - Numeric | |
06 | FH1 | Height flange (mm) EF010695 - Numeric | |
07 | HN1 | Nominal duct height connection 1 (mm) EF010182 - Numeric | |
08 | IL1 | Insert length (mm) EF020279 - Numeric | |
11 | L1 | Length (mm) EF001438 - Numeric | |
14 | WN1 | Nominal duct width connection 1 (mm) EF010181 - Numeric | |
15 | Z1 | Working length (mm) EF006318 - Numeric | |
17 | Connection 1 EF000321 - Alphanumeric |
Features port 2
02 | DN2 | Nominal duct diameter, connection 2 (mm) EF020422 - Numeric | |
09 | IL2 | Insert length (mm) EF020279 - Numeric | |
10 | k2 | Rim thickness (mm) EF010038 - Numeric | |
12 | L2 | Length (mm) EF001438 - Numeric | |
16 | Z2 | Working length (mm) EF006318 - Numeric | |
18 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Reducer embedding duct
Reducer, embedding duct
Transition piece, rectangular/round air duct
