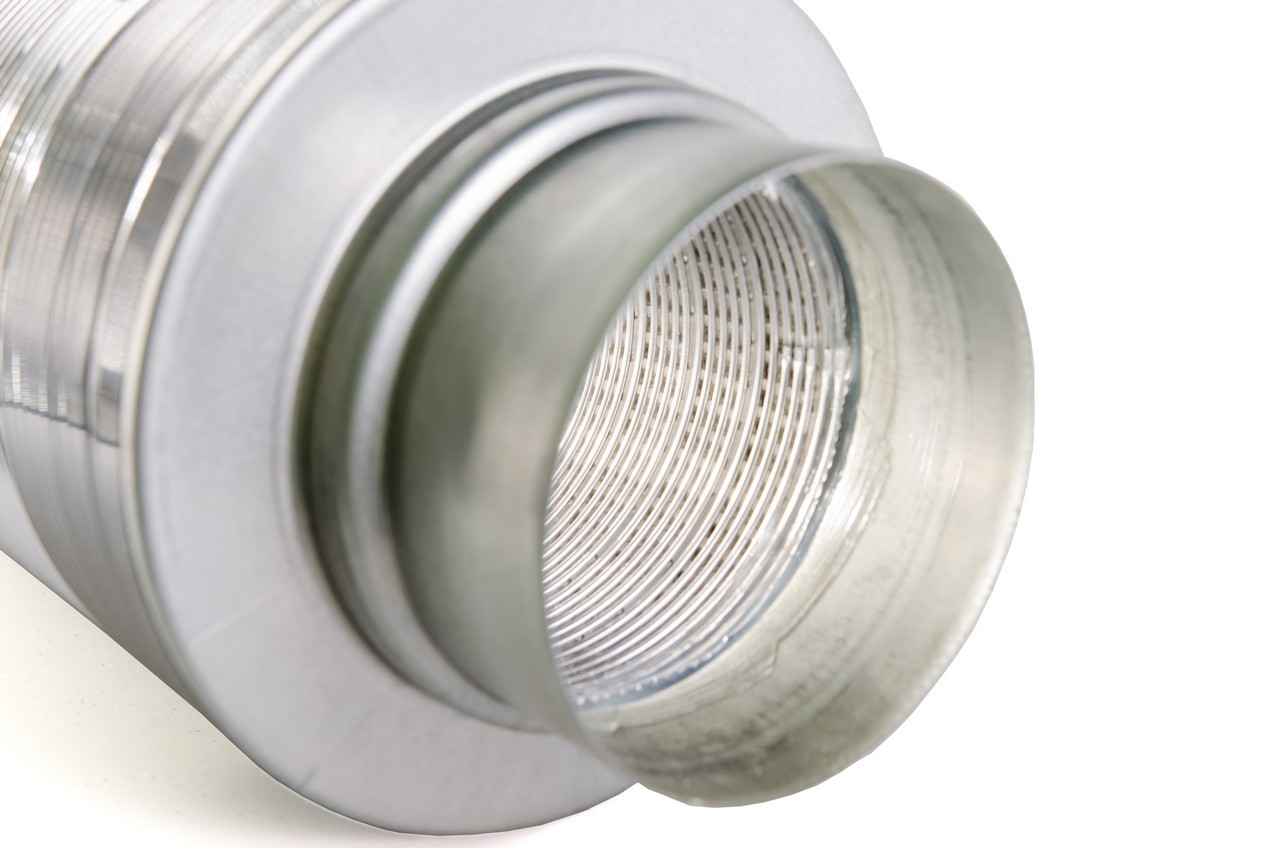

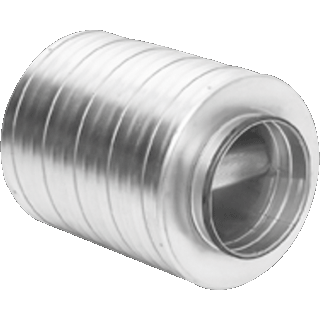

Sound absorber round air duct
Code
MC000088Version
2
Group
Ventilation - Ducts and duct fittings (MG000003)Release
Drawing
Features
03 | Do | Outer diameter (mm) EF020026 - Numeric | |
06 | L | Length (mm) EF001438 - Numeric | |
07 | Z | Working length (mm) EF006318 - Numeric |
Features port 1
01 | DN1 | Nominal duct diameter (mm) EF020311 - Numeric | |
04 | IL1 | Insert length (mm) EF020279 - Numeric | |
08 | Connection 1 EF000321 - Alphanumeric |
Features port 2
02 | DN2 | Nominal duct diameter (mm) EF020311 - Numeric | |
05 | IL2 | Insert length (mm) EF020279 - Numeric | |
09 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Sound absorber round air duct
Sound absorber, around air duct
