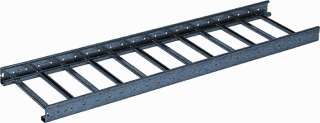

Cable ladder
MC000116 / v3
Code
MC000116Version
3
Group
Electrical - Cable trays and ladders (MG000009)Release
1 / 2
Drawing
Features
01 | Dsp | Rung centre spacing (mm) EF008185 - Numeric | |
02 | Dsp1 | First rung distance centre (mm) EF010861 - Numeric | |
03 | Hi | Inner height (mm) EF006588 - Numeric | |
04 | Ho | Height (mm) EF000040 - Numeric | |
05 | Hsp | Height rung (mm) EF010862 - Numeric | |
06 | L | Length (mm) EF001438 - Numeric | |
07 | Wi | Inner width (mm) EF006466 - Numeric | |
08 | Wo | Width (mm) EF000008 - Numeric | |
09 | Wsp | Rung width (mm) EF010863 - Numeric |
Related productclasses
Synonyms
Cable car with ladder bottom
Cable duct
Cable ladder
Cable ladder/wide span cable ladder
Ladder conveyor system
Pipe ladder
Ship cable ladder
Vertical cable ladder
Verticle cable ladder
Wide span cable ladder
