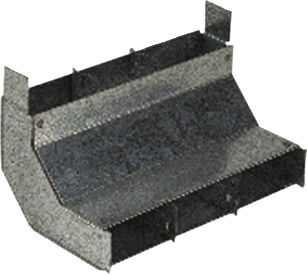

Bend, subfloor duct, vertical, rectangular
MC000117 / v3
Code
MC000117Version
3
Group
Electrical - Underfloor cable systems (MG000050)Release
1 / 2
Drawing
Features
01 | H | Total height (mm) EF001761 - Numeric | |
02 | Ho | Height (mm) EF000040 - Numeric | |
05 | L | Length (mm) EF001438 - Numeric | |
08 | s | Material thickness (mm) EF000386 - Numeric | |
09 | Wi | Inner width (mm) EF006466 - Numeric | |
10 | Wo | Width (mm) EF000008 - Numeric |
Features port 1
03 | IL1 | Insert length (mm) EF020279 - Numeric | |
06 | Lr1 | Length straight (mm) EF010860 - Numeric |
Features port 2
04 | IL2 | Insert length (mm) EF020279 - Numeric | |
07 | Lr2 | Length straight (mm) EF010860 - Numeric |
Related productclasses
Synonyms
Bend for subfloor installation ducting systems
Bend for underfloor installation ducting systems
Bend, subfloor duct, vertical, rectangular
Horizontal bend for underfloor installation ducting systems
Vertical bend for underfloor installation ducting systems
