Code
MC000132Version
Group
Electrical - Wiring devices (MG000019)Release
Drawing
Features
01 | Assembly arrangement EF000005 - Alphanumeric | ||
02 | Utilization EF000133 - Alphanumeric | ||
03 | Mounting method EF000003 - Alphanumeric | ||
04 | Suitable for number of connectors EF001579 - Numeric | ||
05 | a1 | Angle 1 (°) EF010888 - Numeric | |
06 | a2 | Angle 2 (°) EF010889 - Numeric | |
07 | a3 | Angle 3 (°) EF010890 - Numeric | |
08 | FH | Device height (mm) EF008809 - Numeric | |
09 | FW | Device width (mm) EF008808 - Numeric | |
10 | H1 | Height 1 (mm) EF010005 - Numeric | |
11 | H2 | Height 2 (mm) EF010006 - Numeric | |
12 | H3 | Height 3 (mm) EF010887 - Numeric | |
13 | L1 | Length 1 (mm) EF021554 - Numeric | |
14 | L2 | Length 2 (mm) EF021555 - Numeric | |
15 | L3 | Length 3 (mm) EF021750 - Numeric | |
16 | SH | Surface height (mm) EF010886 - Numeric | |
17 | ID | Built-in depth (mm) EF000218 - Numeric | |
18 | D | Diameter (mm) EF000551 - Numeric |
Related productclasses
Synonyms
Adapter
Antenna connection
Antenna socket
Antenna socket box
Appliance connection box
Blind
Blind cover
Blind plate
Central cover plate
Central cover plate for communication technology
Centre plate
Communication connection box
Cover
Cover plate
Cover plate, communication outlet
Covering cap
Data communication connection box copper (twisted pair)
Data communication connection box fibre optic
Elevation ring
End socket
Hinged lid
Insert
Insert/cover for communication technology
Loop-through socket
Modem box
Mounting plate
Multimedia end box
Socket outlet
Supporting plate
TWIN end socket

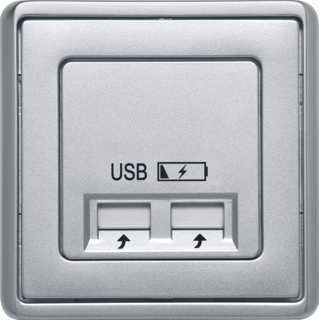

USB power supply
USB socket outlet
Wall socket
