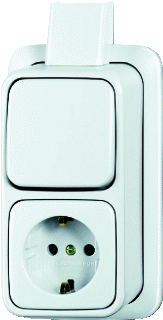

Combination switch/wall socket outlet (vertical)
Code
MC000133Version
2
Group
Electrical - Wiring devices (MG000019)Release
Drawing
Features
01 | Mounting method EF000003 - Alphanumeric | ||
02 | Type of socket outlet EF003497 - Alphanumeric | ||
03 | Type of switch EF003496 - Alphanumeric | ||
04 | Number of socket outlets EF000336 - Numeric | ||
05 | Mounting direction EF003824 - Alphanumeric | ||
06 | FH | Frame height (mm) EF021570 - Numeric | |
07 | FW | Frame width (mm) EF021571 - Numeric | |
08 | H1 | Height 1 (mm) EF010005 - Numeric | |
09 | H2 | Height 2 (mm) EF010006 - Numeric | |
10 | H3 | Height 3 (mm) EF010887 - Numeric | |
11 | Hi | Built-in height (mm) EF000332 - Numeric | |
12 | Ho | Device height (mm) EF008809 - Numeric | |
13 | ID | Built-in depth (mm) EF000218 - Numeric | |
14 | SH | Device depth (mm) EF008810 - Numeric | |
15 | W1 | Width 1 (mm) EF023087 - Numeric | |
16 | Wi | Built-in width (mm) EF000846 - Numeric | |
17 | Wo | Device width (mm) EF008808 - Numeric |
Related productclasses
Synonyms
Combination switch/wall socket outlet (vertical)
