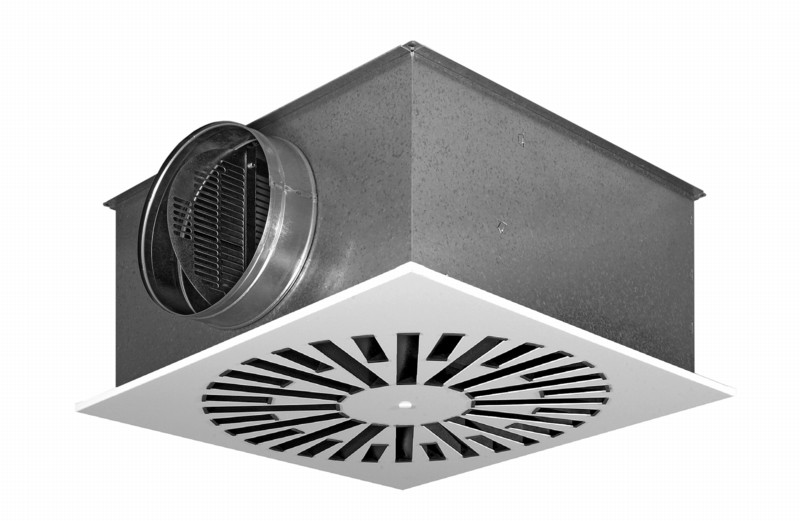

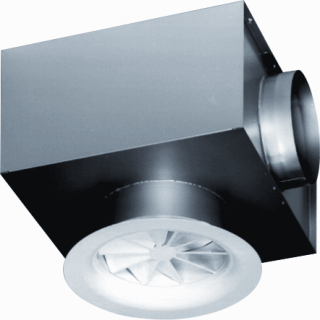

Vortex grille with plenum
MC000178 / v3
Code
MC000178Version
3
Group
Ventilation - Air terminals (inlet/extract) (MG000004)Release
1 / 2
Drawing
Features
01 | Front shape EF001140 - Alphanumeric | ||
02 | Shape of plenum EF010976 - Alphanumeric | ||
03 | Connection location EF020572 - Alphanumeric | ||
05 | D | Plenum diameter (mm) EF010975 - Numeric | |
07 | Df | Front diameter (mm) EF022765 - Numeric | |
08 | Hf | Height of the front (mm) EF003652 - Numeric | |
09 | H1 | Height 1 (mm) EF010005 - Numeric | |
10 | H2 | Height 2 (mm) EF010006 - Numeric | |
12 | L | Length of plenum (mm) EF022775 - Numeric | |
13 | Lf | Front length (mm) EF022772 - Numeric | |
16 | W | Plenum width (mm) EF010973 - Numeric | |
17 | Wf | Front width (mm) EF022764 - Numeric |
Features port 1
04 | Connection EF000443 - Alphanumeric | ||
06 | Dd1 | Duct diameter (mm) EF021896 - Numeric | |
11 | HC1 | Connection height (mm) EF022561 - Numeric | |
14 | L1 | Connection length (mm) EF022519 - Numeric | |
15 | W1 | Centre distance connection (mm) EF010827 - Numeric | |
18 | Z1 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Vortex grille
Vortex grille with plenum
