MC000239

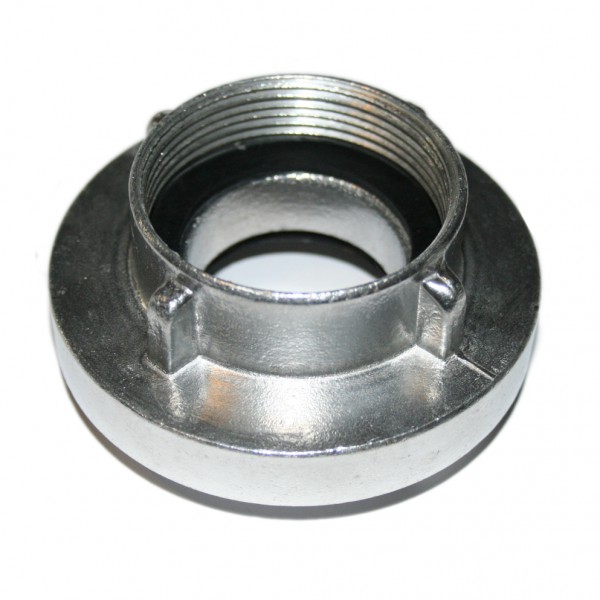

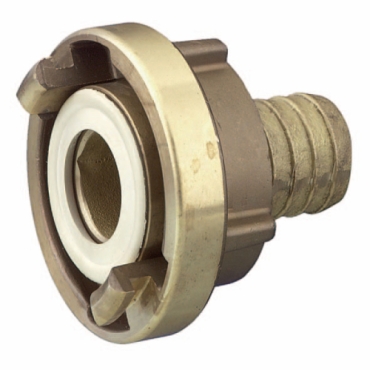

Fittings, flanges and adaptors. Storz coupling; Storz coupling/hose connector; Storz coupling/thread

Code:

Version:

Group:

Fittings, flanges and adaptors

MG000023

Drawing

Features

Le1

EF000125 - Numeric

Features port 1

01	B	Lug distance EF023188 - Alphanumeric
02	D	Diameter (mm) EF000551 - Numeric
04	DN1	Nominal bore of coupling EF023425 - Alphanumeric
09	NH	Lug height (mm) EF011098 - Numeric
14		Connection EF000443 - Alphanumeric

Features port 2

03	Dh2	Diameter, hose connector (mm) EF022639 - Numeric
05	DN2	Size of threaded connection (inch) EF023452 - Alphanumeric
06	Do2	Outer pipe diameter connection (mm) EF020208 - Numeric
07	L2	Connection length (mm) EF022519 - Numeric
10	P2	Sleeve length (mm) EF010520 - Numeric
11	Q2	Length gusset/thread (mm) EF010521 - Numeric
12	s2	Wall thickness connection (mm) EF010546 - Numeric
13	Z2	Working length (mm) EF006318 - Numeric
15		Connection EF000443 - Alphanumeric

Related productclasses

EC010226/3

EC010226/4

EC010226/5

EC010226/6

EC011021/3

EC011021/4

Synonyms

Storz coupling

Storz coupling/hose connector

Storz coupling/thread

Storz coupling
