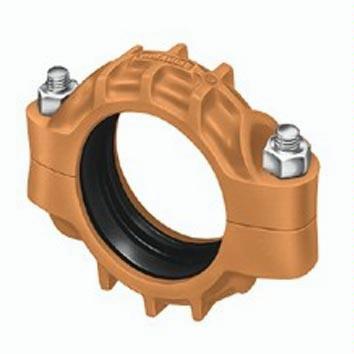

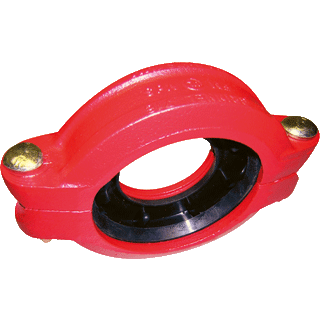

Groove coupling
Code
MC000241Version
1
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
05 | H | Height (mm) EF000040 - Numeric | |
06 | L | Length (mm) EF001438 - Numeric | |
07 | Le1 | Centre-to-centre holes (mm) EF010731 - Numeric | |
08 | W | Width (mm) EF000008 - Numeric |
Features port 1
01 | DN1 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
03 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
09 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
11 | Connection 1 EF000321 - Alphanumeric |
Features port 2
02 | DN2 | Nominal diameter connection 2 EF020052 - Alphanumeric | |
04 | Do2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
10 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
12 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Groove coupling
