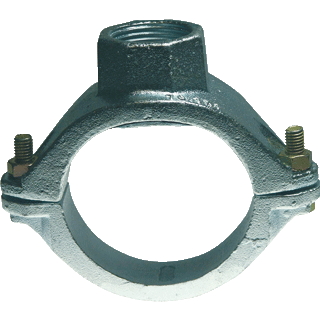

    Mechanical Tee

    Code

    MC000242

    Version

    2

    Group

    Fittings, flanges and adaptors (MG000023)

    Release

    nl 2BA se RSK be InstallData fi Sahkonumerot
    Drawing
    Dimensional drawing
    Features

    01

    D

    Suitable for pipe diameter

    EF022706 - Alphanumeric

    04

    H1

    Height 1 (mm)

    EF010005 - Numeric

    05

    L

    Length (mm)

    EF001438 - Numeric

    07

    Le3

    Centre-to-centre holes (mm)

    EF010731 - Numeric

    10

    W

    Width (mm)

    EF000008 - Numeric

    11

    W1

    Width 1 (mm)

    EF023087 - Numeric
    Features port 1

    02

    DN1

    Nominal diameter

    EF023191 - Alphanumeric

    03

    Do1

    Outer pipe diameter (mm)

    EF006272 - Numeric

    06

    L1

    Length of connection 1 (mm)

    EF020151 - Numeric

    08

    P1

    Height screw gland (mm)

    EF010040 - Numeric

    09

    SLW1

    Wrench width (mm)

    EF000177 - Numeric

    12

    Z1

    Working length connection 1 (mm)

    EF020153 - Numeric

    13

    Connection

    EF000443 - Alphanumeric
    Features port 2

    14

    Connection

    EF000443 - Alphanumeric
    Related productclasses

    EC011014/4

    EC011014/5

    Synonyms

    Broaching saddle

    Mechanical Tee

    Mechanical-T
