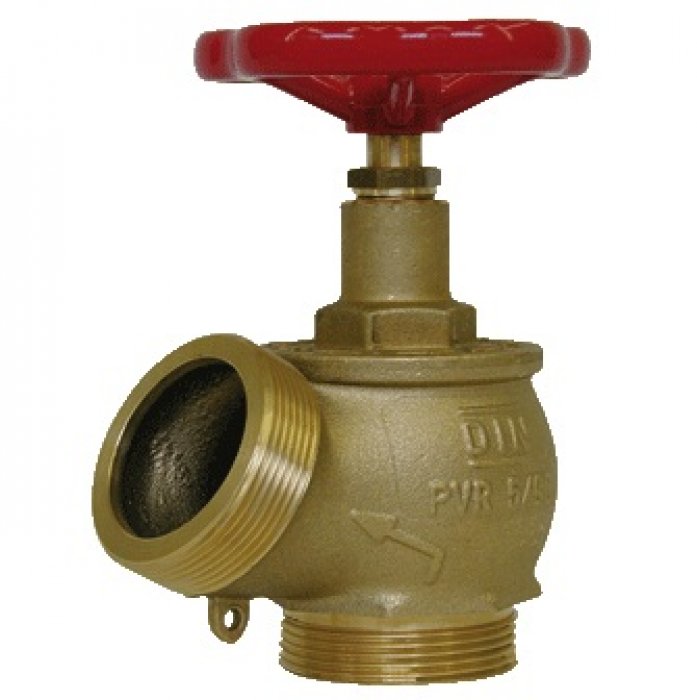

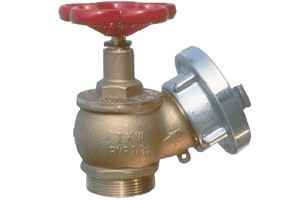

Fire fighting valve
Code
MC000243Version
Group
Sprinkler and fire protection systems (MG000041)Release
Drawing
Features
02 | a2 | Angle (°) EF008153 - Numeric | |
14 | H1 | Height to connection (mm) EF010721 - Numeric | |
15 | H2 | Height 2 (mm) EF010006 - Numeric | |
20 | M | Length of handle/diameter of hand wheel (mm) EF020156 - Numeric |
Features port 1
01 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
04 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
06 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
07 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
08 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
09 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
11 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
13 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
16 | k1 | Pitch circle (mm) EF021643 - Numeric | |
17 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
21 | n1 | Number of bolt holes EF021779 - Numeric | |
23 | P1 | Sleeve length (mm) EF010520 - Numeric | |
24 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
26 | s1 | Wall thickness (mm) EF000229 - Numeric | |
28 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
30 | Connection 1 EF000321 - Alphanumeric |
Features port 2
03 | B | Lug distance, connection 2 (mm) EF020551 - Numeric | |
05 | D | Diameter (mm) EF000551 - Numeric | |
10 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
12 | Do2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
18 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
19 | Le2 | Length 2 (mm) EF021555 - Numeric | |
22 | NH | Lug height (mm) EF011098 - Numeric | |
25 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
27 | s2 | Wall thickness (mm) EF000229 - Numeric | |
29 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
31 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Fire fighting valve
