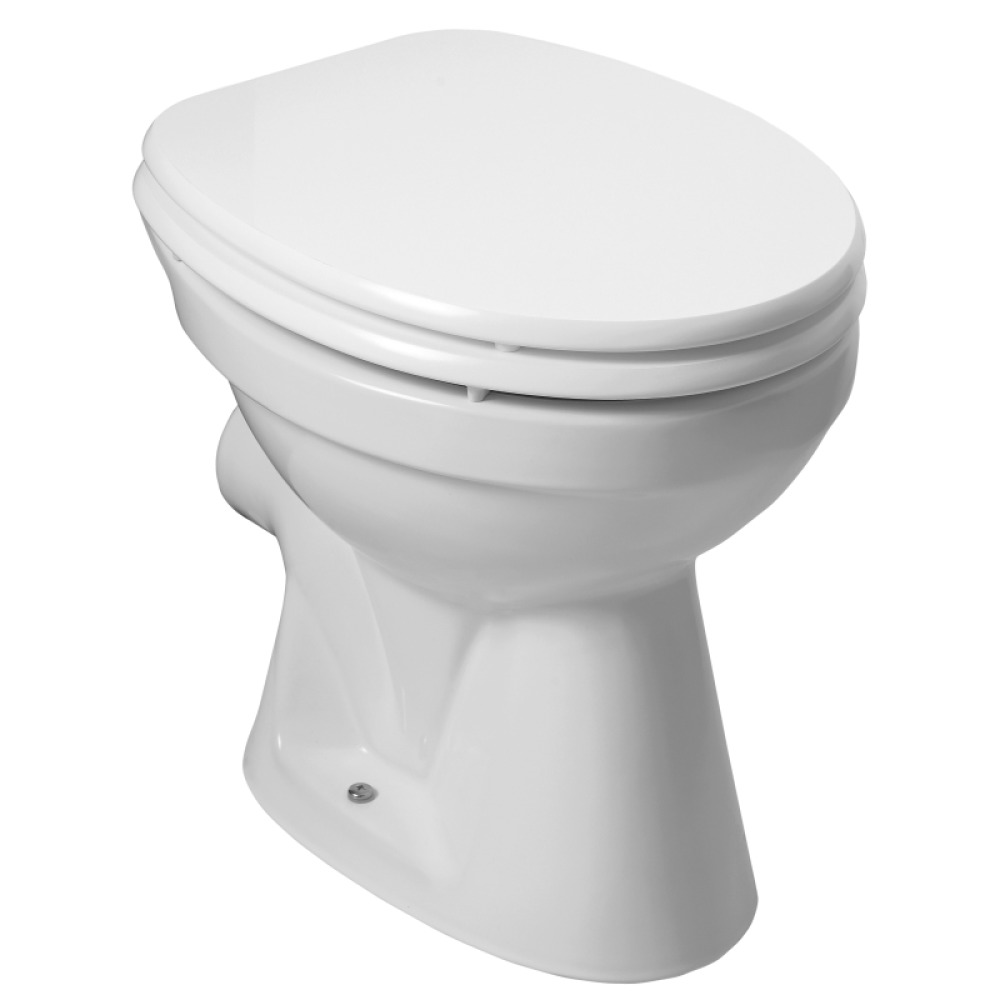

Toilet bowl (floor standing) drain backside

Code

MC000271

Water - Sanitary fixtures and appliances (MG000039)

Drawing

Features

01		Type EF001139 - Alphanumeric
02		Outlet location EF020259 - Alphanumeric
03	D	Depth (mm) EF000049 - Numeric
06	DW	Diameter flushing water hole (mm) EF011438 - Numeric
07	H	Height (mm) EF000040 - Numeric
08	H1	Height to centre flushing water connection (mm) EF011439 - Numeric
09	H2	Height centre drain connection (mm) EF011440 - Numeric
10	Le2	Length 2 (mm) EF021555 - Numeric
11	Le3	Distance to first fastening (mm) EF011434 - Numeric
12	Le4	Distance to second fastening (mm) EF011435 - Numeric
13	Le5	Distance to drain connection (mm) EF011441 - Numeric
16	W	Width (mm) EF000008 - Numeric
17	W1	Centre-to-centre holes (mm) EF010731 - Numeric
18	W2	Width 2 (mm) EF023088 - Numeric

Features port 1

04	DN1	Nominal diameter EF023191 - Alphanumeric
05	Do1	Outer pipe diameter connection (mm) EF020208 - Numeric
14	Q1	Length gusset/thread (mm) EF010521 - Numeric
15	s1	Wall thickness connection (mm) EF010546 - Numeric
19		Connection EF000443 - Alphanumeric

Related productclasses

Synonyms

Closet (floor standing) drain backside

Closet (floor standing) PK

Toilet bowl (floor standing) drain backside

Toilet closet (floor standing) drain backside
