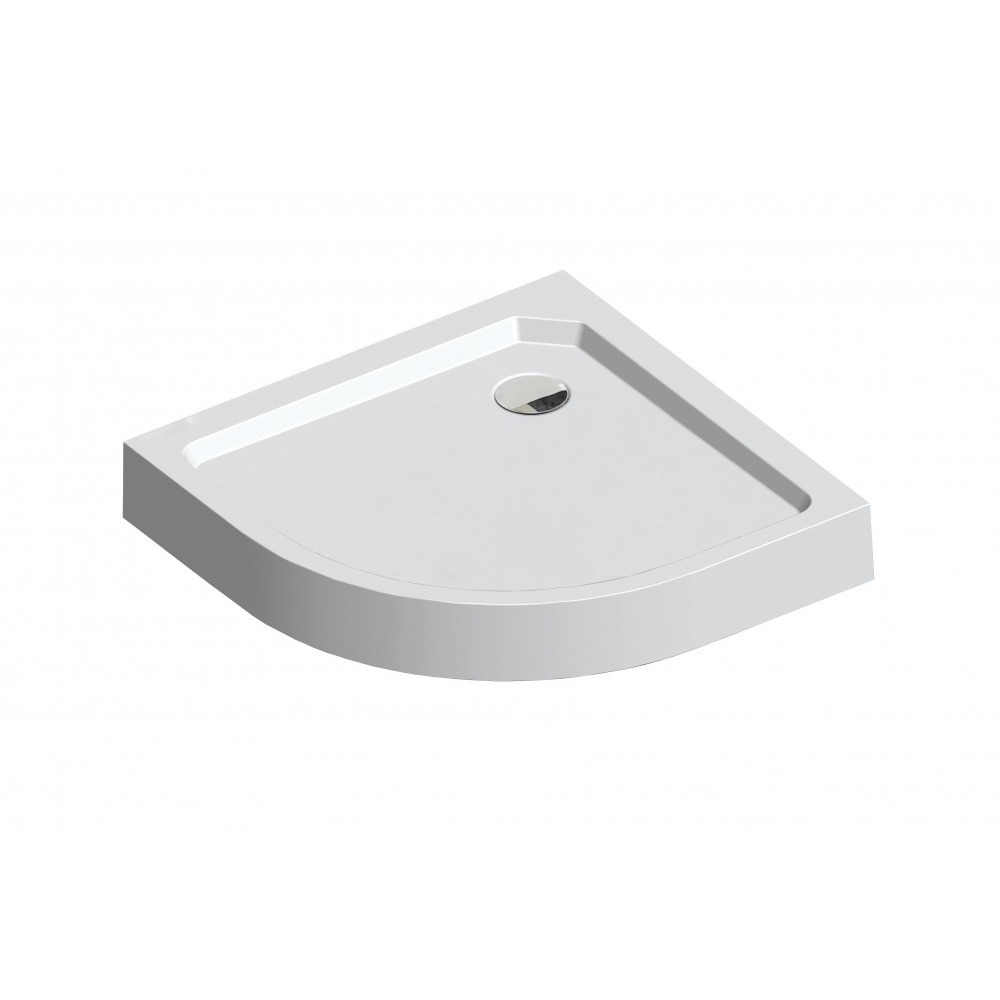

Shower tray (quarter round)
MC000293 / v3
Code
MC000293Version
3
Group
Water - Sanitary fixtures and appliances (MG000039)Release
1 / 2
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
02 | Corner model EF020814 - Logical | ||
04 | H | Height (mm) EF000040 - Numeric | |
05 | H1 | Edge height (mm) EF021511 - Numeric | |
06 | L | Length (mm) EF001438 - Numeric | |
08 | Le1 | Rim thickness (mm) EF010038 - Numeric | |
09 | Le3 | Length straight 1 (mm) EF011477 - Numeric | |
10 | Le4 | Length to centre drain (mm) EF011466 - Numeric | |
11 | W | Width (mm) EF000008 - Numeric | |
12 | W1 | Length straight 2 (mm) EF011478 - Numeric | |
13 | W2 | Width to centre drain (mm) EF011513 - Numeric |
Features port 1
03 | AG | Diameter of drain hole (mm) EF020710 - Numeric | |
07 | L1 | Connection length (mm) EF022519 - Numeric |
Related productclasses
Synonyms
Shower tray (quarter round)
