Code
MC000297Version
Group
Water - Sanitary fittings (taps and mixers) (MG000038)Release
Drawing
Features
01 | Number of grips EF020780 - Alphanumeric | ||
02 | With grips EF020799 - Logical | ||
03 | Mounting method EF000003 - Alphanumeric | ||
04 | Number of tap holes EF021808 - Alphanumeric | ||
05 | Spout model EF020795 - Alphanumeric | ||
06 | Type of spout EF022750 - Alphanumeric | ||
09 | D | Diameter tap housing (mm) EF011491 - Numeric | |
14 | H1 | Construction height, underside of tap nozzle (mm) EF020797 - Numeric | |
15 | H2 | Height to top side handle (mm) EF011492 - Numeric | |
18 | Le1 | Spout overhang length (mm) EF020789 - Numeric | |
19 | Le2 | Handgrip length (mm) EF020165 - Numeric |
Features port 1
07 | C1 | Height screw gland (mm) EF010040 - Numeric | |
10 | DN1 | Connection size supply EF020785 - Alphanumeric | |
12 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
16 | L1 | Connection length (mm) EF022519 - Numeric | |
20 | P1 | Sleeve length (mm) EF010520 - Numeric | |
22 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
24 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
26 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
28 | Connection supply EF002286 - Alphanumeric |
Features port 2
08 | C2 | Height screw gland (mm) EF010040 - Numeric | |
11 | DN2 | Connection size supply EF020785 - Alphanumeric | |
13 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
17 | L2 | Connection length (mm) EF022519 - Numeric | |
21 | P2 | Sleeve length (mm) EF010520 - Numeric | |
23 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
25 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
27 | SLW2 | Wrench width (mm) EF000177 - Numeric | |
29 | Connection supply EF002286 - Alphanumeric |
Related productclasses
Synonyms

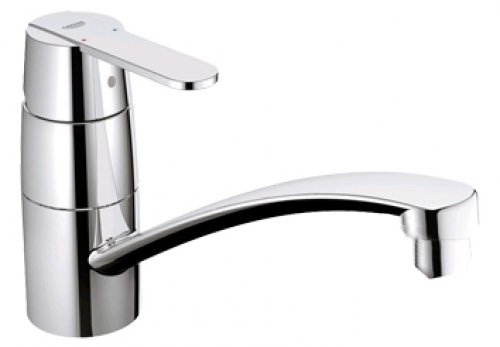

Kitchen mixing tap with low outlet (single-grip)
Mixing tap with low outlet (single-grip)
Washbasin mixing tap (single-grip)
