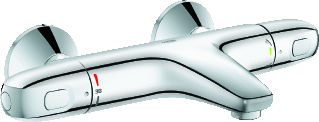

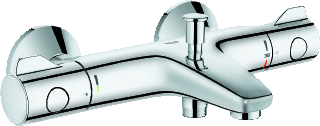

Bath mixing tap (thermostatic)
Code
MC000302Version
1
Group
Water - Sanitary fittings (taps and mixers) (MG000038)Release
Drawing
Features
01 | Thermostatic EF020105 - Logical | ||
02 | Mounting method EF000003 - Alphanumeric | ||
03 | With diverter unit EF023957 - Logical | ||
10 | Le1 | Distance to shower connection (mm) EF011493 - Numeric | |
11 | Le2 | Distance to outlet (mm) EF011499 - Numeric | |
14 | W | Width (mm) EF000008 - Numeric | |
15 | W1 | Centre distance (mm) EF021835 - Numeric |
Features port 1
04 | C1 | Height screw gland (mm) EF010040 - Numeric | |
06 | DN1 | Connection size supply EF020785 - Alphanumeric | |
08 | L1 | Connection length (mm) EF022519 - Numeric | |
12 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
16 | Connection supply EF002286 - Alphanumeric |
Features port 2
05 | C2 | Height screw gland (mm) EF010040 - Numeric | |
07 | DN2 | Connection size supply EF020785 - Alphanumeric | |
09 | L2 | Connection length (mm) EF022519 - Numeric | |
13 | SLW2 | Wrench width (mm) EF000177 - Numeric | |
17 | Connection supply EF002286 - Alphanumeric |
Related productclasses
Synonyms
Bath mixing tap (thermostatic)
