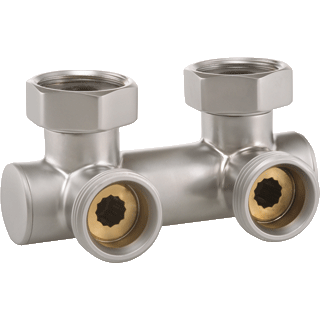

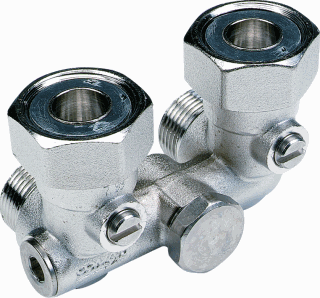

Bottom H-block (right-angled)
Code
MC000326Version
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Connection direction towards wall (square) EF020537 - Logical | ||
04 | DHB | Diameter H-block (mm) EF011563 - Numeric | |
13 | Le1 | Length (mm) EF001438 - Numeric | |
14 | Le2 | Distance to centre connection (mm) EF010708 - Numeric | |
15 | Le3 | Centre distance, supply/return (mm) EF020525 - Numeric |
Features port 1
05 | DN1 | Size of pipe connection EF021187 - Alphanumeric | |
09 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
16 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
20 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
26 | Z1 | Working length (mm) EF006318 - Numeric | |
30 | Port connection code EF010809 - Numeric | ||
34 | Connection EF000443 - Alphanumeric |
Features port 2
06 | DN2 | Size of pipe connection EF021187 - Alphanumeric | |
10 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
17 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
21 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
27 | Z2 | Working length (mm) EF006318 - Numeric | |
31 | Port connection code EF010809 - Numeric | ||
35 | Connection EF000443 - Alphanumeric |
Features port 3
02 | C3 | Height screw gland (mm) EF010040 - Numeric | |
07 | DN3 | Size of radiator connection EF021250 - Alphanumeric | |
11 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
18 | Q3 | Length gusset/thread (mm) EF010521 - Numeric | |
22 | s3 | Wall thickness connection (mm) EF010546 - Numeric | |
24 | SLW3 | Wrench width (mm) EF000177 - Numeric | |
28 | Z3 | Working length (mm) EF006318 - Numeric | |
32 | Port connection code EF010809 - Numeric | ||
36 | Connection EF000443 - Alphanumeric |
Features port 4
03 | C4 | Height screw gland (mm) EF010040 - Numeric | |
08 | DN4 | Size of radiator connection EF021250 - Alphanumeric | |
12 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
19 | Q4 | Length gusset/thread (mm) EF010521 - Numeric | |
23 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
25 | SLW4 | Wrench width (mm) EF000177 - Numeric | |
29 | Z4 | Working length (mm) EF006318 - Numeric | |
33 | Port connection code EF010809 - Numeric | ||
37 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Bottom H-block (right-angled)
