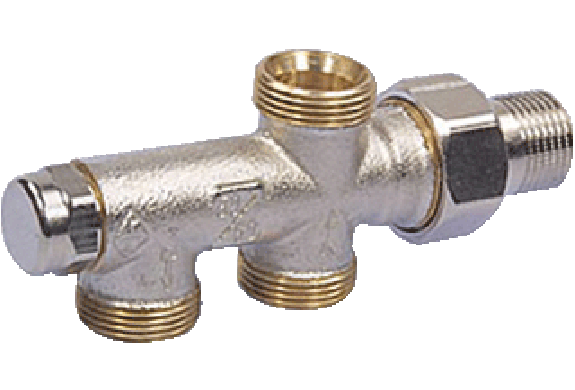

Two-point bottom connecting block (direction connection to floor)
Code
MC000354Version
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Connection direction, pipes EF020522 - Alphanumeric | ||
04 | DB | Diameter control (mm) EF011583 - Numeric | |
13 | Le1 | Centre distance, supply/return (mm) EF020525 - Numeric | |
14 | Le2 | Height operating element (mm) EF022273 - Numeric | |
15 | Le3 | Length 3 (mm) EF021750 - Numeric | |
16 | Le4 | Length to gland nut (mm) EF010764 - Numeric |
Features port 1
02 | C1 | Height screw gland (mm) EF010040 - Numeric | |
05 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
09 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
17 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
21 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
25 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
27 | Z1 | Working length of tail piece connection (mm) EF020528 - Numeric | |
31 | Port connection code EF010809 - Numeric | ||
35 | Connection EF000443 - Alphanumeric |
Features port 2
03 | C2 | Height screw gland (mm) EF010040 - Numeric | |
06 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
10 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
18 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
22 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
26 | SLW2 | Wrench width (mm) EF000177 - Numeric | |
28 | Z2 | Working length of tap connection (mm) EF020530 - Numeric | |
32 | Port connection code EF010809 - Numeric | ||
36 | Connection EF000443 - Alphanumeric |
Features port 3
07 | DN3 | Size of pipe connection EF021187 - Alphanumeric | |
11 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
19 | Q3 | Length gusset/thread (mm) EF010521 - Numeric | |
23 | s3 | Wall thickness connection (mm) EF010546 - Numeric | |
29 | Z3 | Working length of supply and return connection (mm) EF020531 - Numeric | |
33 | Port connection code EF010809 - Numeric | ||
37 | Connection EF000443 - Alphanumeric |
Features port 4
08 | DN4 | Size of pipe connection EF021187 - Alphanumeric | |
12 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
20 | Q4 | Length gusset/thread (mm) EF010521 - Numeric | |
24 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
30 | Z4 | Working length of supply and return connection (mm) EF020531 - Numeric | |
34 | Port connection code EF010809 - Numeric | ||
38 | Connection EF000443 - Alphanumeric |
