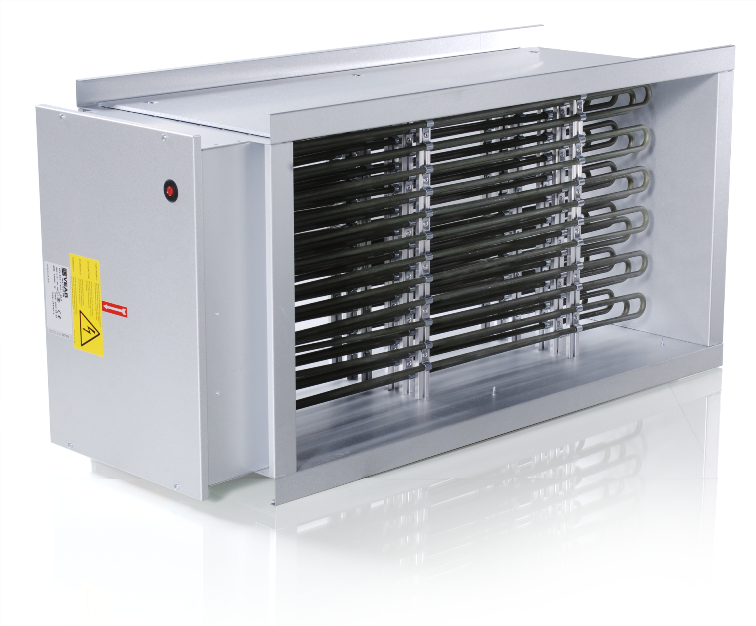

Duct heater, electric (rectangular)
Ventilation and flue gas components. Duct heater, electric (rectangular)
Code:
MC000364
Version:
Group:
Ventilation and flue gas components
MG000043Drawing
Features
01 |
ModelEF000010 - Alphanumeric | ||
02 |
E1 |
Height operating element (mm)EF022273 - Numeric | |
05 |
H |
Height (mm)EF000040 - Numeric | |
06 |
H1 |
Height 1 (mm)EF010005 - Numeric | |
07 |
H2 |
Height 2 (mm)EF010006 - Numeric | |
10 |
L |
Length (mm)EF001438 - Numeric | |
11 |
M1 |
Width 1 (mm)EF023087 - Numeric | |
12 |
M2 |
Width 2 (mm)EF023088 - Numeric | |
13 |
s |
Plate thickness (mm)EF006112 - Numeric | |
14 |
W |
Width (mm)EF000008 - Numeric |
Features port 1
03 |
FH1 |
Height flange (mm)EF010695 - Numeric | |
08 |
HN1 |
Nominal duct height (mm)EF020313 - Numeric | |
15 |
WN1 |
Nominal duct width (mm)EF020312 - Numeric | |
17 |
Z1 |
Working length connection 1 (mm)EF020153 - Numeric | |
19 |
ConnectionEF000443 - Alphanumeric |
Features port 2
04 |
FH2 |
Height flange (mm)EF010695 - Numeric | |
09 |
HN2 |
Nominal duct height (mm)EF020313 - Numeric | |
16 |
WN2 |
Nominal duct width (mm)EF020312 - Numeric | |
18 |
Z2 |
Working length connection 2 (mm)EF020154 - Numeric | |
20 |
ConnectionEF000443 - Alphanumeric |
Synonyms
Duct heater, electric (rectangular)
