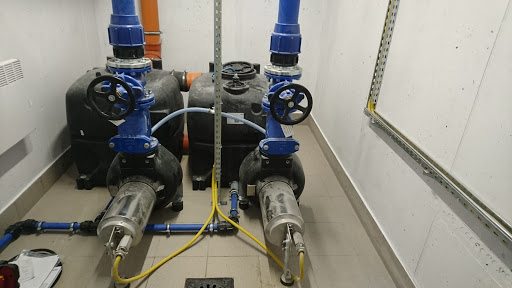

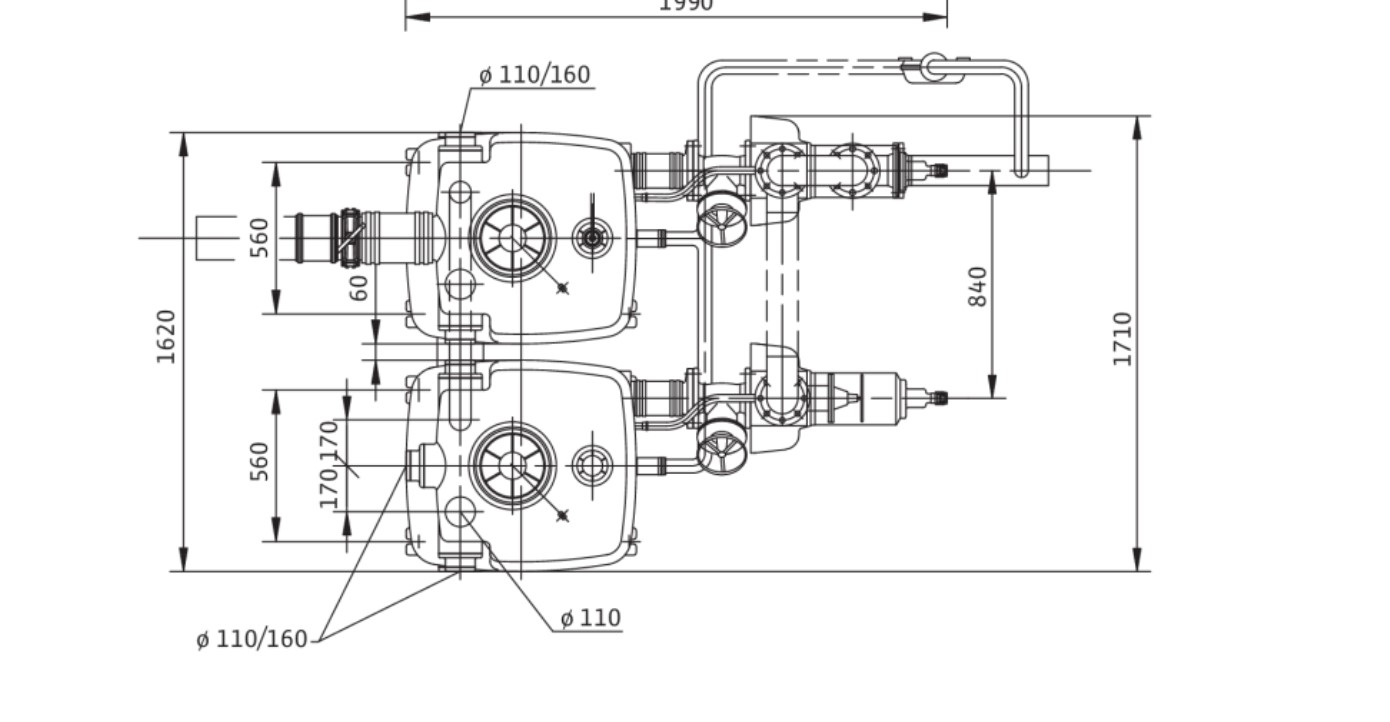

MC000387 - Wastewater pump unit (double pump, double reservoir horizontal)

Features

43	Dp	Pump diameter (mm) EF020289 - Numeric
48	H	Height (mm) EF000040 - Numeric
49	h1	Height to connection (mm) EF010721 - Numeric
50	h2	Pump height (mm) EF023086 - Numeric
51	h3	Height reservoir (mm) EF016248 - Numeric
56	L	Total length (mm) EF000369 - Numeric
64	Le2	Length reservoir (mm) EF016254 - Numeric
87	W	Width (mm) EF000008 - Numeric
88	w1	Width reservoir (mm) EF011436 - Numeric
93	w6	Distance to side break tank (mm) EF016255 - Numeric

Features port 1

01		Connection inlet side EF025116 - Alphanumeric
09	a1	Angle to first bolt hole (°) EF010524 - Numeric
13	b1	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
19	D1	Outer diameter of flange (mm) EF021531 - Numeric
23	d2-1	Diameter bolt hole (mm) EF021780 - Numeric
27	d4-1	Diameter sealing edge (mm) EF010527 - Numeric
31	DN1	Nominal diameter connection inlet side EF025117 - Alphanumeric
37	Do1	Outer pipe diameter connection inlet side (mm) EF025503 - Numeric
44	f1	Thickness sealing edge (mm) EF010528 - Numeric
52	k1	Pitch circle (mm) EF021643 - Numeric
57	L1	Length of connection 1 (mm) EF020151 - Numeric
63	Le1	Distance to centre connection (mm) EF010708 - Numeric
71	n1	Number of bolt holes EF021779 - Numeric
75	P1	Sleeve length (mm) EF010520 - Numeric
81	Q1	Length gusset/thread (mm) EF010521 - Numeric
94	Z1	Working length (mm) EF006318 - Numeric

Features port 2

02		Connection outlet side EF025977 - Alphanumeric
03		With oval counterflanges EF023103 - Logical
10	a2	Angle to first bolt hole (°) EF010524 - Numeric
14	b2	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
17	Bo2	Width oval flange (mm) EF010723 - Numeric
20	D2	Outer diameter of flange (mm) EF021531 - Numeric
24	d2-2	Diameter bolt hole (mm) EF021780 - Numeric
28	d4-2	Diameter sealing edge (mm) EF010527 - Numeric
32	DN2	Nominal diameter connection outlet side EF025118 - Alphanumeric
38	Do2	Outer pipe diameter connection outlet side (mm) EF025504 - Numeric
45	f2	Thickness sealing edge (mm) EF010528 - Numeric
53	k2	Pitch circle (mm) EF021643 - Numeric
58	L2	Length of connection 2 (mm) EF020152 - Numeric
67	Lh2	Centre-to-centre holes (mm) EF010731 - Numeric
69	Lo2	Length oval flange (mm) EF010732 - Numeric
72	n2	Number of bolt holes EF021779 - Numeric
76	P2	Sleeve length (mm) EF010520 - Numeric
82	Q2	Length gusset/thread (mm) EF010521 - Numeric
89	w2	Width to connection (mm) EF010819 - Numeric
95	Z2	Working length (mm) EF006318 - Numeric

Features port 3

04		Connection outlet side EF025977 - Alphanumeric
05		With oval counterflanges EF023103 - Logical
11	a3	Angle to first bolt hole (°) EF010524 - Numeric
15	b3	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
18	Bo3	Width oval flange (mm) EF010723 - Numeric
21	D3	Outer diameter of flange (mm) EF021531 - Numeric
25	d2-3	Diameter bolt hole (mm) EF021780 - Numeric
29	d4-3	Diameter sealing edge (mm) EF010527 - Numeric
33	DN3	Nominal diameter connection outlet side EF025118 - Alphanumeric
39	Do3	Outer pipe diameter connection outlet side (mm) EF025504 - Numeric
46	f3	Thickness sealing edge (mm) EF010528 - Numeric
54	k3	Pitch circle (mm) EF021643 - Numeric
59	L3	Length of connection 3 (mm) EF020159 - Numeric
68	Lh3	Centre-to-centre holes (mm) EF010731 - Numeric
70	Lo3	Length oval flange (mm) EF010732 - Numeric
73	n3	Number of bolt holes EF021779 - Numeric
77	P3	Sleeve length (mm) EF010520 - Numeric
83	Q3	Length gusset/thread (mm) EF010521 - Numeric
90	w3	Width to connection (mm) EF010819 - Numeric
96	Z3	Working length (mm) EF006318 - Numeric

Features port 4

06		Connection EF000443 - Alphanumeric
34	DN4	Nominal diameter connection EF025620 - Alphanumeric
40	Do4	Outer pipe diameter connection (mm) EF020208 - Numeric
60	L4	Length of connection 3 (mm) EF020159 - Numeric
65	Le4	Distance to centre connection (mm) EF010708 - Numeric
78	P4	Sleeve length (mm) EF010520 - Numeric
84	Q4	Length gusset/thread (mm) EF010521 - Numeric
91	w4	Width to connection (mm) EF010819 - Numeric
97	Z4	Working length (mm) EF006318 - Numeric

Features port 5

07		Connection EF000443 - Alphanumeric
35	DN5	Nominal diameter connection EF025620 - Alphanumeric
41	Do5	Outer pipe diameter connection (mm) EF020208 - Numeric
61	L5	Length of connection 3 (mm) EF020159 - Numeric
66	Le5	Distance to centre connection (mm) EF010708 - Numeric
79	P5	Sleeve length (mm) EF010520 - Numeric
85	Q5	Length gusset/thread (mm) EF010521 - Numeric
92	w5	Width to connection (mm) EF010819 - Numeric
98	Z5	Working length (mm) EF006318 - Numeric

Features port 6

08		Connection inlet side EF025116 - Alphanumeric
12	a6	Angle to first bolt hole (°) EF010524 - Numeric
16	b6	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
22	D6	Outer diameter of flange (mm) EF021531 - Numeric
26	d2-6	Diameter bolt hole (N/mm) EF021780 - Numeric
30	d4-6	Diameter sealing edge (mm) EF010527 - Numeric
36	DN6	Nominal diameter connection inlet side EF025117 - Alphanumeric
42	Do6	Outer pipe diameter connection inlet side (mm) EF025503 - Numeric
47	f6	Thickness sealing edge (mm) EF010528 - Numeric
55	k6	Pitch circle (mm) EF021643 - Numeric
62	L6	Length of connection 3 (mm) EF020159 - Numeric
74	n6	Number of bolt holes EF021779 - Numeric
80	P6	Sleeve length (mm) EF010520 - Numeric
86	Q6	Length gusset/thread (mm) EF010521 - Numeric
99	Z6	Working length (mm) EF006318 - Numeric
