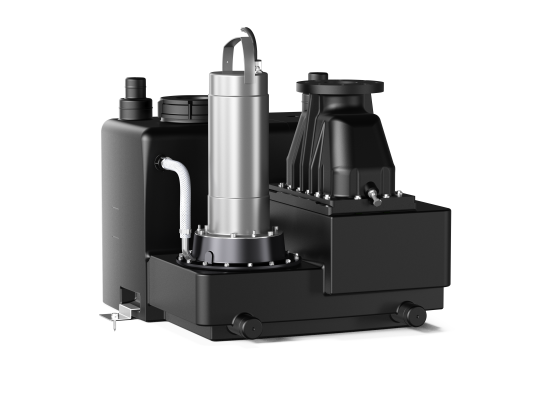

Wastewater pump unit (single vertical pump)
Code
MC000388Version
Group
Pumps - Waste water (MG000036)Release
Drawing
Features
20 | Dp1 | Pump diameter (mm) EF020289 - Numeric | |
22 | H | Height (mm) EF000040 - Numeric | |
23 | h1 | Height reservoir (mm) EF016248 - Numeric | |
24 | h2 | Height reservoir 2 (mm) EF016253 - Numeric | |
25 | h3 | Height reservoir 3 (mm) EF016270 - Numeric | |
26 | h4 | Pump height (mm) EF023086 - Numeric | |
28 | L | Length (mm) EF001438 - Numeric | |
36 | Le6 | Distance to centre pump (mm) EF016284 - Numeric | |
54 | W | Width (mm) EF000008 - Numeric | |
58 | w6 | Distance to side reservoir 2 (mm) EF016257 - Numeric |
Features port 1
01 | Connection outlet side EF025977 - Alphanumeric | ||
05 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
06 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
07 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
08 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
09 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
10 | DN1 | Nominal diameter connection outlet side EF025118 - Alphanumeric | |
14 | Do1 | Outer pipe diameter connection outlet side (mm) EF025504 - Numeric | |
21 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
27 | k1 | Pitch circle (mm) EF021643 - Numeric | |
29 | L1 | Connection length (mm) EF022519 - Numeric | |
33 | Le1 | Distance to side break tank (mm) EF016255 - Numeric | |
37 | Lh1 | Centre-to-centre holes (mm) EF010731 - Numeric | |
38 | Lo1 | Length oval flange (mm) EF010732 - Numeric | |
39 | n1 | Number of bolt holes EF021779 - Numeric | |
40 | P1 | Sleeve length (mm) EF010520 - Numeric | |
44 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
50 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
55 | w1 | Centre distance connection (mm) EF010827 - Numeric | |
59 | Z1 | Working length (mm) EF006318 - Numeric |
Features port 2
02 | Connection inlet side EF025116 - Alphanumeric | ||
11 | DN2 | Nominal diameter connection inlet side EF025117 - Alphanumeric | |
15 | Do2 | Outer pipe diameter connection inlet side (mm) EF025503 - Numeric | |
30 | L2 | Connection length (mm) EF022519 - Numeric | |
41 | P2 | Sleeve length (mm) EF010520 - Numeric | |
45 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
51 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
60 | Z2 | Working length (mm) EF006318 - Numeric |
Features port 3
03 | Connection EF000443 - Alphanumeric | ||
12 | DN3 | Nominal diameter connection EF025620 - Alphanumeric | |
16 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
17 | Do3-2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
31 | L3 | Connection length (mm) EF022519 - Numeric | |
34 | Le3 | Distance to centre connection (mm) EF010708 - Numeric | |
42 | P3 | Sleeve length (mm) EF010520 - Numeric | |
46 | Q3 | Length gusset/thread (mm) EF010521 - Numeric | |
47 | Q3-2 | Length gusset/thread 2 (mm) EF016429 - Numeric | |
52 | s3 | Wall thickness connection (mm) EF010546 - Numeric | |
56 | w3 | Centre distance connection (mm) EF010827 - Numeric | |
61 | Z3 | Working length (mm) EF006318 - Numeric |
Features port 4
04 | Connection EF000443 - Alphanumeric | ||
13 | DN4 | Nominal diameter connection EF025620 - Alphanumeric | |
18 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
19 | Do4-2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
32 | L4 | Connection length (mm) EF022519 - Numeric | |
35 | Le4 | Distance to centre connection (mm) EF010708 - Numeric | |
43 | P4 | Sleeve length (mm) EF010520 - Numeric | |
48 | Q4 | Length gusset/thread (mm) EF010521 - Numeric | |
49 | Q4-2 | Length gusset/thread 2 (mm) EF016429 - Numeric | |
53 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
57 | w4 | Centre distance connection (mm) EF010827 - Numeric | |
62 | Z4 | Working length (mm) EF006318 - Numeric |
