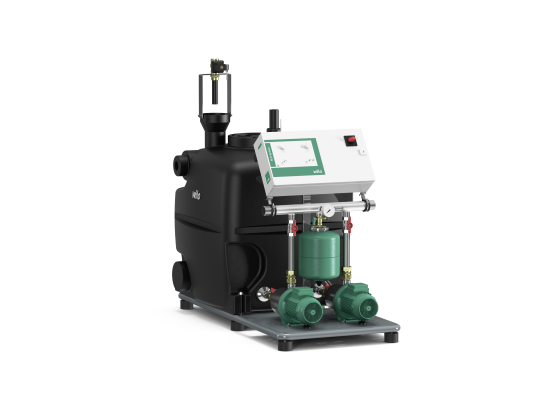

MC000390 - Water pump unit (waste/rain water)

Features

12	Dp	Pump diameter (mm) EF020289 - Numeric
13	H	Height (mm) EF000040 - Numeric
17	h4	Height engine (mm) EF016276 - Numeric
18	L	Frame length (mm) EF016317 - Numeric
19	FH	Frame height (mm) EF021570 - Numeric
33	W	Width (mm) EF000008 - Numeric
35	w2	Distance to centre pump (mm) EF016284 - Numeric
36	w3	Centre-to-centre (double) pump (mm) EF010739 - Numeric

Features port 1

01		Connection EF000443 - Alphanumeric
06	DN1	Nominal diameter EF023191 - Alphanumeric
09	Do1	Outer pipe diameter connection (mm) EF020208 - Numeric
14	h1	Height to centre connection (mm) EF010771 - Numeric
20	L1	Length of connection 1 (mm) EF020151 - Numeric
23	Le1	Distance to side break tank (mm) EF016255 - Numeric
24	P1	Sleeve length (mm) EF010520 - Numeric
27	Q1	Length gusset/thread (mm) EF010521 - Numeric
30	s1	Wall thickness connection (mm) EF010546 - Numeric
34	w1	Centre distance connection (mm) EF010827 - Numeric
37	Z1	Working length (mm) EF006318 - Numeric
40	b1	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
43	D1	Outer diameter of flange (mm) EF021531 - Numeric
46	d4-1	Diameter sealing edge (mm) EF010527 - Numeric
49	f1	Thickness sealing edge (mm) EF010528 - Numeric
52	k1	Pitch circle (mm) EF021643 - Numeric
55	d2-1	Diameter bolt hole (mm) EF021780 - Numeric
64	n1	Number of bolt holes EF021779 - Numeric
67	a1	Angle to first bolt hole (°) EF010524 - Numeric

Features port 2

02		Connection EF000443 - Alphanumeric
03		With oval counterflanges EF023103 - Logical
07	DN2	Nominal diameter EF023191 - Alphanumeric
10	Do2	Outer pipe diameter connection (mm) EF020208 - Numeric
15	h2	Height to centre connection (mm) EF010771 - Numeric
21	L2	Length of connection 2 (mm) EF020152 - Numeric
25	P2	Sleeve length (mm) EF010520 - Numeric
28	Q2	Length gusset/thread (mm) EF010521 - Numeric
31	s2	Wall thickness connection (mm) EF010546 - Numeric
38	Z2	Working length (mm) EF006318 - Numeric
41	b2	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
44	D2	Outer diameter of flange (mm) EF021531 - Numeric
47	d4-2	Diameter sealing edge (mm) EF010527 - Numeric
50	f2	Thickness sealing edge (mm) EF010528 - Numeric
53	k2	Pitch circle (mm) EF021643 - Numeric
56	d2-2	Diameter bolt hole (mm) EF021780 - Numeric
58	Bo2	Width oval flange (mm) EF010723 - Numeric
60	Lo2	Length oval flange (mm) EF010732 - Numeric
62	Lh2	Centre-to-centre holes (mm) EF010731 - Numeric
65	n2	Number of bolt holes EF021779 - Numeric
68	a2	Angle to first bolt hole (°) EF010524 - Numeric

Features port 3

04		Connection EF000443 - Alphanumeric
05		With oval counterflanges EF023103 - Logical
08	DN3	Nominal diameter EF023191 - Alphanumeric
11	Do3	Outer pipe diameter connection (mm) EF020208 - Numeric
16	h3	Height to centre connection (mm) EF010771 - Numeric
22	L3	Length of connection 3 (mm) EF020159 - Numeric
26	P3	Sleeve length (mm) EF010520 - Numeric
29	Q3	Length gusset/thread (mm) EF010521 - Numeric
32	s3	Wall thickness connection (mm) EF010546 - Numeric
39	Z3	Working length (mm) EF006318 - Numeric
42	b3	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
45	D3	Outer diameter of flange (mm) EF021531 - Numeric
48	d4-3	Diameter sealing edge (mm) EF010527 - Numeric
51	f3	Thickness sealing edge (mm) EF010528 - Numeric
54	k3	Pitch circle (mm) EF021643 - Numeric
57	d2-3	Diameter bolt hole (mm) EF021780 - Numeric
59	Bo3	Width oval flange (mm) EF010723 - Numeric
61	Lo3	Length oval flange (mm) EF010732 - Numeric
63	Lh3	Centre-to-centre holes (mm) EF010731 - Numeric
66	n3	Number of bolt holes EF021779 - Numeric
69	a3	Angle to first bolt hole (°) EF010524 - Numeric
