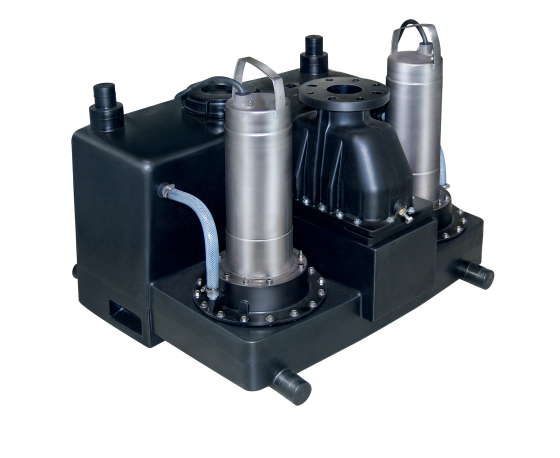

Wastewater pump unit
Code
EC010860Version
Group
Pressure increase/decrease (EG015260)Release
ETIM-8.0
Features
01 | Suitable for faeces EF024286 - Logical | |
02 | Suitable for outdoor installation EF011885 - Logical | |
03 | Set-up behind toilet bowl EF023158 - Logical | |
04 | With cutting system EF020293 - Logical | |
05 | Material pump casing EF023038 - Alphanumeric | |
06 | Material quality pump casing EF023143 - Alphanumeric | |
07 | Material impeller/pump wheel EF011652 - Alphanumeric | |
08 | Material quality impeller/pump wheel EF024149 - Alphanumeric | |
09 | Material reservoir EF000447 - Alphanumeric | |
10 | Material quality reservoir EF020604 - Alphanumeric | |
11 | Reservoir volume (l) EF000176 - Numeric | |
12 | Number of pumps EF023148 - Numeric | |
13 | Volume flow rate (BEP) (m³/h) EF014904 - Numeric | |
14 | Discharge head at flow rate (BEP) (kPa) EF014905 - Numeric | |
15 | Max. discharge flow (m³/h) EF000991 - Numeric | |
16 | Max. static height (m) EF000992 - Numeric | |
17 | Max. operating pressure (bar) EF020449 - Numeric | |
18 | Electrical connection EF003701 - Alphanumeric | |
19 | Cable length (m) EF000536 - Numeric | |
20 | Rated voltage (V) EF003977 - Range | |
21 | Number of phases EF000351 - Numeric | |
22 | Frequency EF005455 - Alphanumeric | |
23 | Nominal current (A) EF000001 - Numeric | |
24 | Motor power input (P1) per motor (kW) EF012424 - Numeric | |
25 | Motor power output (P2) per motor (kW) EF012425 - Numeric | |
26 | Nominal operating mode EF015781 - Alphanumeric | |
27 | Insulation class according to IEC EF023092 - Alphanumeric | |
28 | Rotational speed (1/min) EF001642 - Numeric | |
29 | Communication EF015266 - Alphanumeric | |
30 | Radio standard Bluetooth EF007178 - Logical | |
31 | Radio standard WLAN 802.11 EF007179 - Logical | |
32 | Radio standard 2G / 3G / 4G EF016383 - Logical | |
33 | Mobile communication standard 5G EF016385 - Logical | |
34 | Interface signal 0-10 V / 2-10 V EF016386 - Logical | |
35 | Interface signal 0-20 mA / 4-20 mA EF016387 - Logical | |
36 | Interface PT100 / PT1000 / PTC EF016388 - Logical | |
37 | Interface Pulse Width Modulation (PWM) EF016389 - Logical | |
38 | Interface pulse counter EF016390 - Logical | |
39 | Potential free switch contact EF003626 - Logical | |
40 | With communication interface RS-485 EF007314 - Logical | |
41 | With communication interface RS-232 EF007312 - Logical | |
42 | Supporting protocol for EtherNet/IP EF007521 - Logical | |
43 | Supporting protocol for KNX EF003055 - Logical | |
44 | Supporting protocol for PROFIBUS EF003052 - Logical | |
45 | Supporting protocol for PROFINET IO EF007525 - Logical | |
46 | Supporting protocol for CAN/CANOpen EF016391 - Logical | |
47 | Supporting protocol for Modbus TCP EF016392 - Logical | |
48 | Supporting protocol for Modbus RTU EF016393 - Logical | |
49 | Supporting protocol for BACnet MS/TP EF016394 - Logical | |
50 | Supporting protocol for BACnet IP EF016395 - Logical | |
51 | Supporting protocol for LON/LONWorks EF016396 - Logical | |
52 | Supporting protocol for LIN Bus EF016397 - Logical | |
53 | Medium temperature (continuous) (°C) EF023182 - Range | |
54 | Ambient temperature (°C) EF002386 - Range | |
55 | Number of inlet ports EF020980 - Numeric | |
56 | Connection inlet side EF025116 - Alphanumeric | |
57 | Nominal diameter connection inlet side EF025117 - Alphanumeric | |
58 | Outer pipe diameter connection inlet side (mm) EF025503 - Numeric | |
59 | Flange compression stage connection inlet side EF026143 - Alphanumeric | |
60 | Connection standard inlet side EF014906 - Alphanumeric | |
61 | Connection outlet side EF025977 - Alphanumeric | |
62 | Nominal diameter connection outlet side EF025118 - Alphanumeric | |
63 | Outer pipe diameter connection outlet side (mm) EF025504 - Numeric | |
64 | Flange compression stage connection outlet side EF026233 - Alphanumeric | |
65 | Connection standard outlet side EF014907 - Alphanumeric | |
66 | Flange shape EF001339 - Alphanumeric | |
67 | With non-return valve EF024841 - Logical | |
68 | With de-aeration EF001161 - Logical | |
69 | Degree of protection (IP) EF005474 - Alphanumeric | |
70 | Width (mm) EF000008 - Numeric | |
71 | Depth (mm) EF000049 - Numeric | |
72 | Height (mm) EF000040 - Numeric | |
73 | Max. dimension of fixed parts (mm) EF023105 - Numeric | |
74 | With alarm function EF005624 - Logical | |
75 | Alarm output EF001922 - Logical | |
76 | Explosion-proof EF004663 - Logical | |
77 | Type approval according to BBR/EKS EFSE0002 - Logical |
Synonyms
Dirty water pump unit
Faeces pomp unit
Faeces pump
Faeces unit
Pump
Pumping station
Rain pump system
Rainwater pump
Rainwater sump
Sewage pump unit
Waste unit
Wastewater pump unit
Wastewater sump
