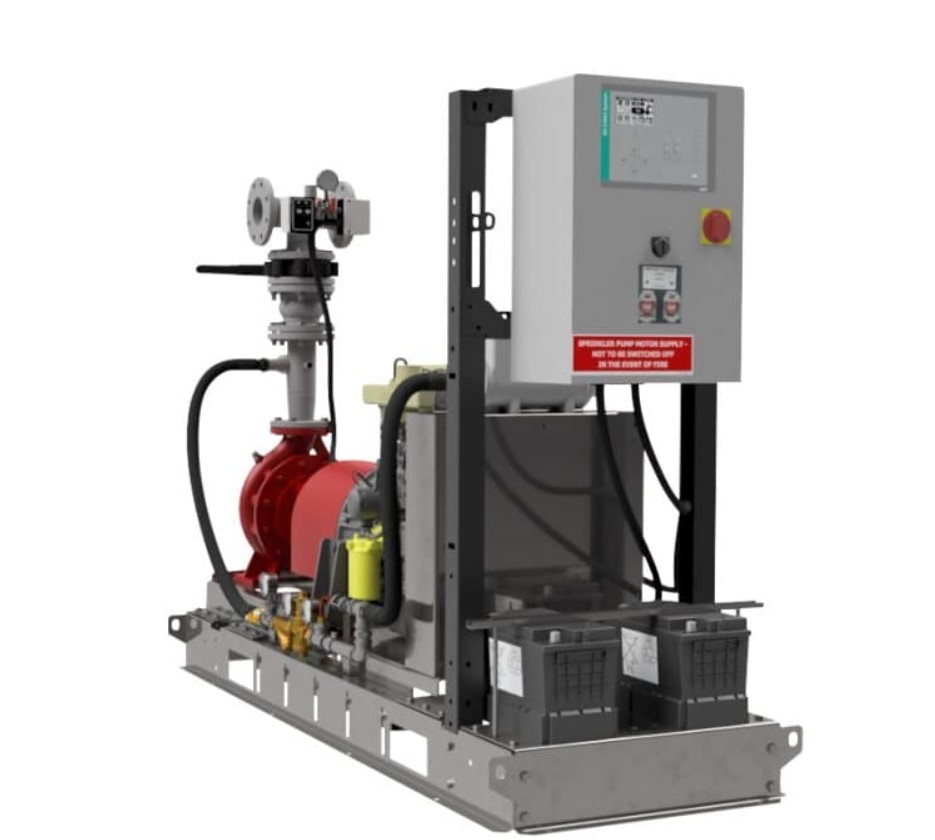

Single fire fighter booster without jockey pump
Code
MC000395Version
Group
Water - Supply and wastewater pumps (MG000035)Release
Drawing
Features
08 | Dieselpump EF016290 - Logical | ||
29 | Df | Thickness foundation plate (mm) EF011562 - Numeric | |
48 | H | Height electrical cabinet (mm) EF010840 - Numeric | |
50 | h2 | Height till header (mm) EF016291 - Numeric | |
53 | h13 | Height electrical cabinet 1 (mm) EF016293 - Numeric | |
58 | L | Foundation plate length (mm) EF023097 - Numeric | |
66 | Le1 | Length till end of pump (mm) EF016296 - Numeric | |
67 | Le2 | Distance to centre connection (mm) EF010708 - Numeric | |
68 | Le5 | Distance backside cabinet (mm) EF016298 - Numeric | |
69 | Le6 | Thickness electrical cabinet (mm) EF010750 - Numeric | |
82 | W | Foundation plate width (mm) EF023098 - Numeric | |
83 | w1 | Distance to centre pump (mm) EF016284 - Numeric | |
86 | w13 | Distance to side cabinet (mm) EF016300 - Numeric | |
87 | w14 | Width electrical cabinet (mm) EF010751 - Numeric |
Features port 1
01 | Connection inlet side EF025116 - Alphanumeric | ||
09 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
13 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
17 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
21 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
25 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
30 | DN1 | Nominal diameter connection inlet side EF025117 - Alphanumeric | |
37 | Do1 | Outer pipe diameter connection inlet side (mm) EF025503 - Numeric | |
44 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
49 | h1 | Height to centre connection (mm) EF010771 - Numeric | |
54 | k1 | Pitch circle (mm) EF021643 - Numeric | |
59 | L1 | Connection length (mm) EF022519 - Numeric | |
70 | n1 | Number of bolt holes EF021779 - Numeric |
Features port 2
02 | Connection outlet side EF025977 - Alphanumeric | ||
10 | a2 | Angle to first bolt hole (°) EF010524 - Numeric | |
14 | b2 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
18 | D2 | Outer diameter of flange (mm) EF021531 - Numeric | |
22 | d2-2 | Diameter bolt hole (mm) EF021780 - Numeric | |
26 | d4-2 | Diameter sealing edge (mm) EF010527 - Numeric | |
31 | DN2 | Nominal diameter connection outlet side EF025118 - Alphanumeric | |
38 | Do2 | Outer pipe diameter connection outlet side (mm) EF025504 - Numeric | |
45 | f2 | Thickness sealing edge (mm) EF010528 - Numeric | |
55 | k2 | Pitch circle (mm) EF021643 - Numeric | |
60 | L2 | Connection length (mm) EF022519 - Numeric | |
71 | n2 | Number of bolt holes EF021779 - Numeric |
Features port 3
03 | Connection outlet side EF025977 - Alphanumeric | ||
11 | a3 | Angle to first bolt hole (°) EF010524 - Numeric | |
15 | b3 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
19 | D3 | Outer diameter of flange (mm) EF021531 - Numeric | |
23 | d2-3 | Diameter bolt hole (mm) EF021780 - Numeric | |
27 | d4-3 | Diameter sealing edge (mm) EF010527 - Numeric | |
32 | DN3 | Nominal diameter connection outlet side EF025118 - Alphanumeric | |
39 | Do3 | Outer pipe diameter connection outlet side (mm) EF025504 - Numeric | |
46 | f3 | Thickness sealing edge (mm) EF010528 - Numeric | |
56 | k3 | Pitch circle (mm) EF021643 - Numeric | |
61 | L3 | Connection length (mm) EF022519 - Numeric | |
72 | n3 | Number of bolt holes EF021779 - Numeric |
Features port 4
04 | Connection EF000443 - Alphanumeric | ||
33 | DN4 | Nominal diameter connection EF025620 - Alphanumeric | |
40 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
62 | L4 | Connection length (mm) EF022519 - Numeric | |
75 | Q4 | Length gusset/thread (mm) EF010521 - Numeric | |
78 | s4 | Wall thickness connection (mm) EF010546 - Numeric | |
84 | w4 | Distance to centre connection (mm) EF010708 - Numeric |
Features port 5
05 | Connection EF000443 - Alphanumeric | ||
34 | DN5 | Nominal diameter connection EF025620 - Alphanumeric | |
41 | Do5 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
63 | L5 | Connection length (mm) EF022519 - Numeric | |
74 | P5 | Sleeve length (mm) EF010520 - Numeric | |
79 | s5 | Wall thickness connection (mm) EF010546 - Numeric | |
85 | w5 | Distance to centre connection (mm) EF010708 - Numeric | |
88 | Z5 | Working length (mm) EF006318 - Numeric |
Features port 6
06 | Connection EF000443 - Alphanumeric | ||
35 | DN6 | Nominal diameter connection EF025620 - Alphanumeric | |
42 | Do6 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
51 | h6 | Height to centre connection (mm) EF010771 - Numeric | |
64 | L6 | Connection length (mm) EF022519 - Numeric | |
76 | Q6 | Length gusset/thread (mm) EF010521 - Numeric | |
80 | s6 | Wall thickness connection (mm) EF010546 - Numeric |
Features port 7
07 | Connection EF000443 - Alphanumeric | ||
12 | a7 | Angle to first bolt hole (°) EF010524 - Numeric | |
16 | b7 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
20 | D7 | Outer diameter of flange (mm) EF021531 - Numeric | |
24 | d2-7 | Diameter bolt hole (mm) EF021780 - Numeric | |
28 | d4-7 | Diameter sealing edge (mm) EF010527 - Numeric | |
36 | DN7 | Nominal diameter connection EF025620 - Alphanumeric | |
43 | Do7 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
47 | f7 | Thickness sealing edge (mm) EF010528 - Numeric | |
52 | h7 | Height to centre connection (mm) EF010771 - Numeric | |
57 | k7 | Pitch circle (mm) EF021643 - Numeric | |
65 | L7 | Connection length (mm) EF022519 - Numeric | |
73 | n7 | Number of bolt holes EF021779 - Numeric | |
77 | Q7 | Length gusset/thread (mm) EF010521 - Numeric | |
81 | s7 | Wall thickness connection (mm) EF010546 - Numeric |
Related productclasses
Synonyms
Single fire fighter booster without jockey pump
