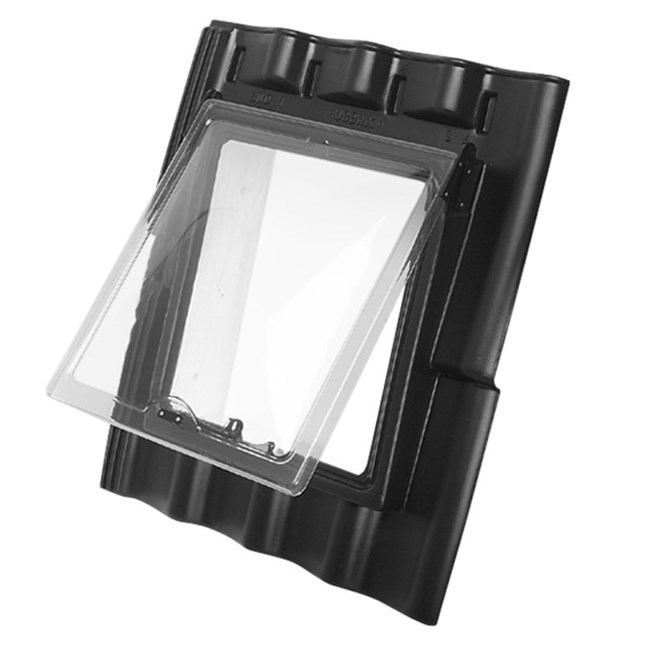

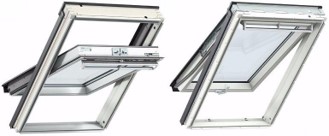

Roof window
Code
MC000425Version
2
Group
Architectural - Doors, windows and hatches (MG000014)Release
Drawing
Features
01 | a1 | Angle (°) EF008153 - Numeric | |
02 | Di | Built-in depth (mm) EF000218 - Numeric | |
03 | H | Height (mm) EF000040 - Numeric | |
04 | L | Length (mm) EF001438 - Numeric | |
05 | Lc | Length in the clear (mm) EF025311 - Numeric | |
06 | Lo | Length roof opening (mm) EF010507 - Numeric | |
07 | W | Width (mm) EF000008 - Numeric | |
08 | Wc | Width in the clear (mm) EF025312 - Numeric | |
09 | Wo | Width roof opening (mm) EF010506 - Numeric |
Related productclasses
Synonyms
Roof window
Skylight
