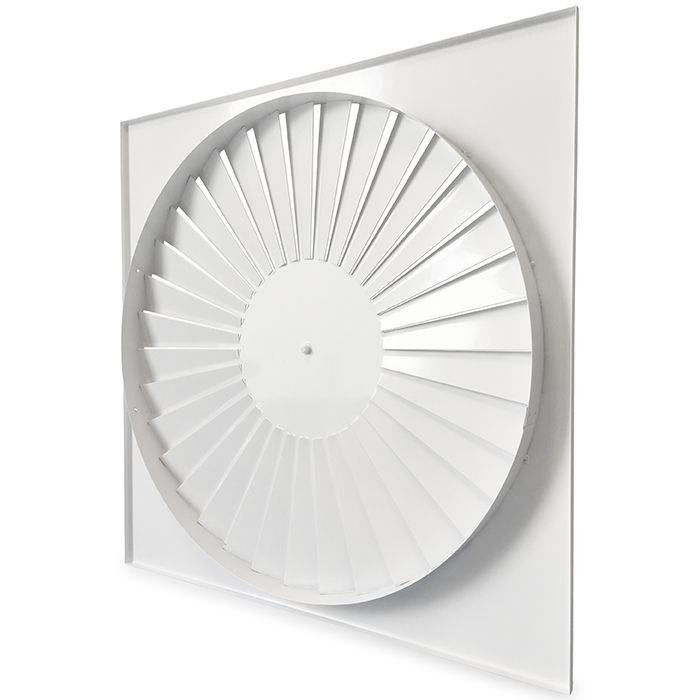

Vortex grille without plenum
Code
MC000434Version
1
Group
Ventilation - Air terminals (inlet/extract) (MG000004)Release
Drawing
Features
01 | Front shape EF001140 - Alphanumeric | ||
04 | Df | Front diameter (mm) EF022765 - Numeric | |
06 | Hf | Height of the front (mm) EF003652 - Numeric | |
08 | Lf | Front length (mm) EF022772 - Numeric | |
09 | Wf | Front width (mm) EF022764 - Numeric |
Features port 1
02 | Connection EF000443 - Alphanumeric | ||
03 | Dd1 | Duct diameter (mm) EF021896 - Numeric | |
05 | H1 | Height (mm) EF000040 - Numeric | |
07 | L1 | Connection length (mm) EF022519 - Numeric | |
10 | Z1 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Extraction grille
Supply grille
Vortex grille without plenum
