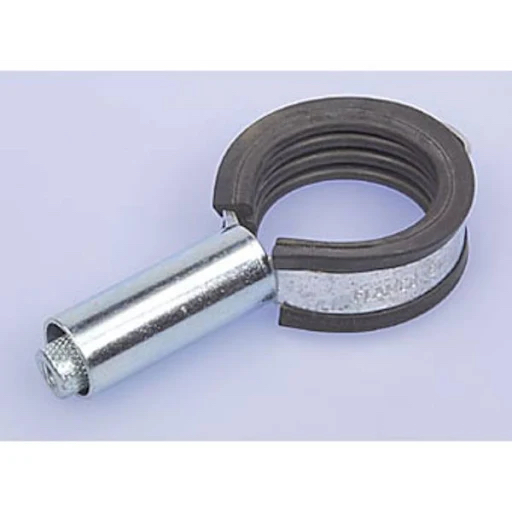

One-strap bracket round (fixing and clamping in one)
MC000439 / v2
Code
MC000439Version
2
Group
Supports - Installation support hardware (MG000031)Release
1 / 3
Drawing
Features
01 | Lock facility EF020446 - Alphanumeric | ||
02 | B1 | Width (mm) EF000008 - Numeric | |
03 | Di | Inner diameter (mm) EF000065 - Numeric | |
04 | Li | Length (mm) EF001438 - Numeric | |
05 | s1 | Material thickness 1 (mm) EF011443 - Numeric | |
06 | s2 | Material thickness 2 (mm) EF011444 - Numeric |
Features port 1
07 | B | Width opening (mm) EF004565 - Numeric | |
08 | L1 | Length to connection (mm) EF010818 - Numeric | |
09 | W | Height (mm) EF000040 - Numeric |
Related productclasses
Synonyms
One-piece round bracket
One-strap bracket round (fixing and clamping in one)
