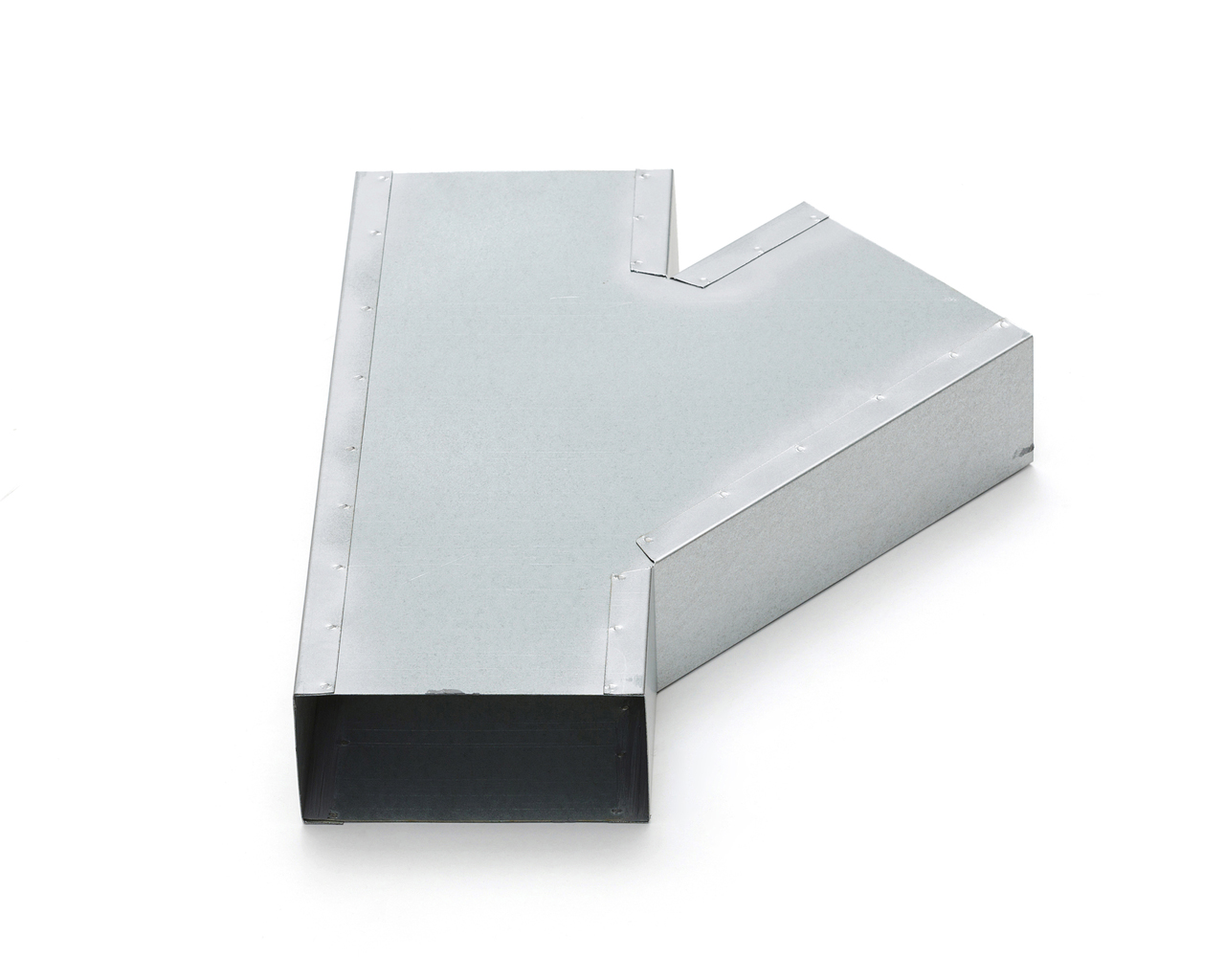

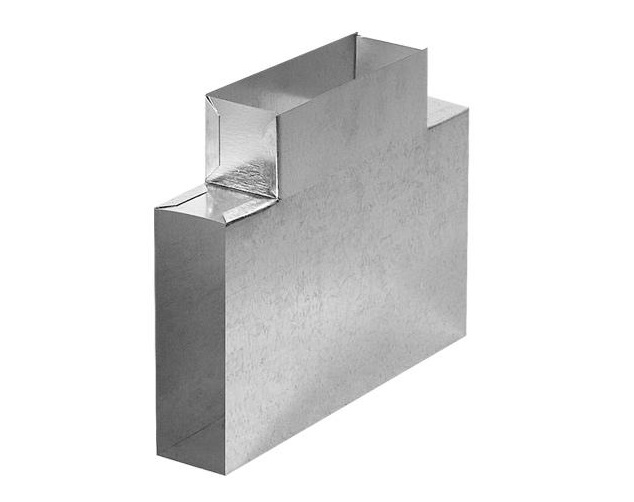

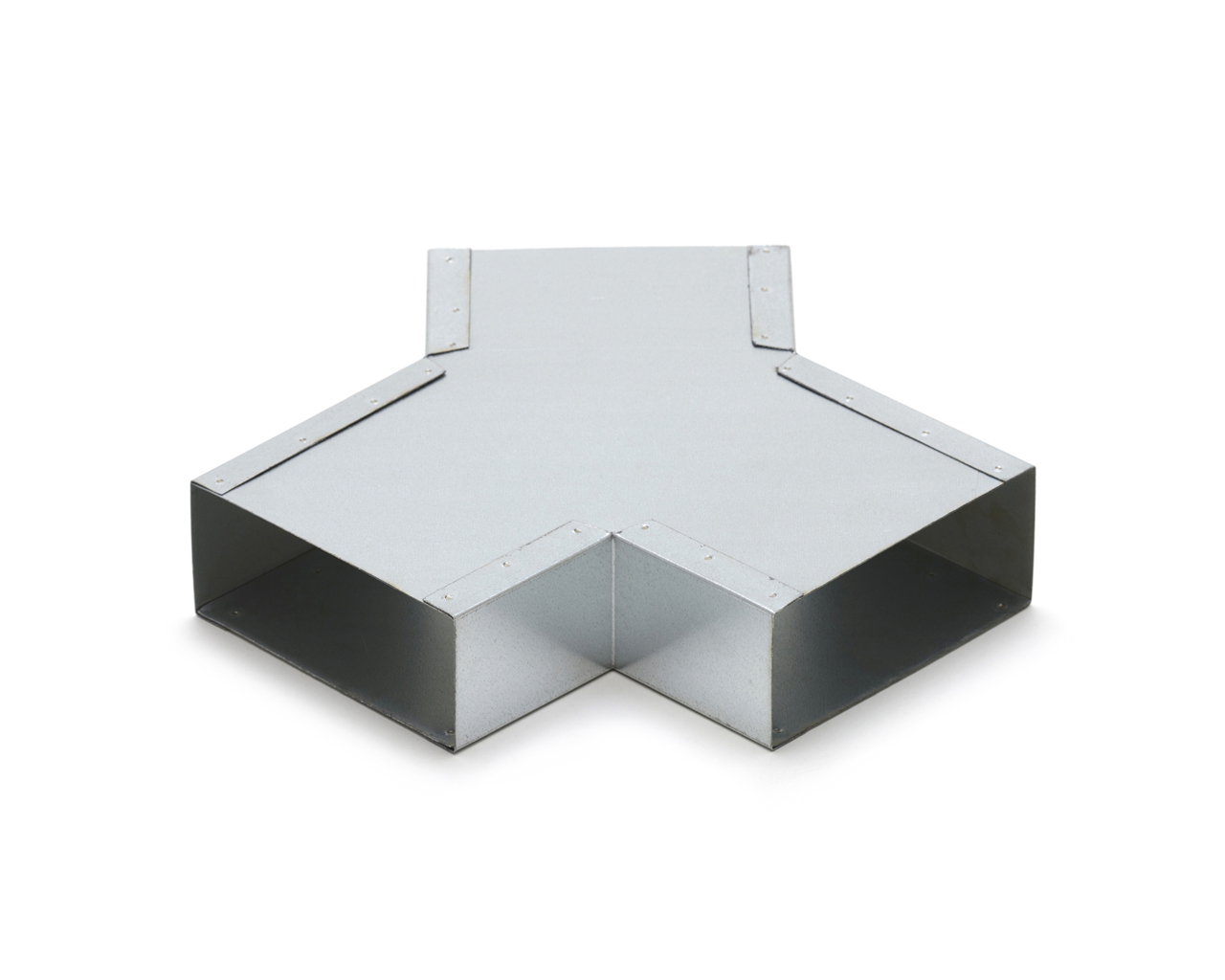

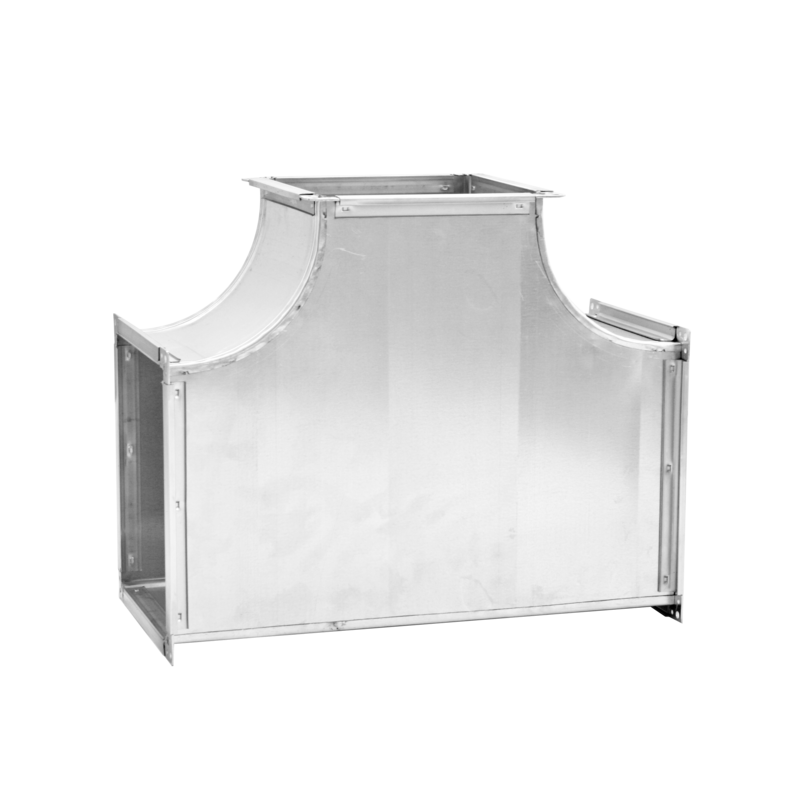

T-piece rectangular air duct

Code

MC000692

Ventilation - Ducts and duct fittings (MG000003)

Drawing

Features

01	a-2	Angle connection 2 (°) EF020554 - Numeric
02	a-3	Angle connection 3 (°) EF011535 - Numeric
03	s	Material thickness (mm) EF000386 - Numeric
06	L1	Length of connection 1 (mm) EF020151 - Numeric
07	L2	Length of connection 2 (mm) EF020152 - Numeric
08	L3	Length of connection 3 (mm) EF020159 - Numeric

Features port 1

CT000023/3

CT000026/2

CT000030/2

CT000034/3

Features port 2

CT000023/3

CT000026/2

CT000030/2

CT000034/3

Ri-2

Inner radius (mm)

EF004793 - Numeric

Features port 3

CT000023/3

CT000026/2

CT000030/2

CT000034/3

Ri-3

Inner radius (mm)

EF004793 - Numeric

Related productclasses

Synonyms

T-piece rectangular air duct
