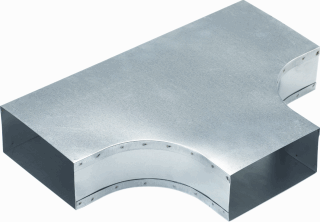

T-Y-piece embedding duct EC011518
Features 18
- 1
MaterialEF002169
Choose one value
Stainless steelSteelPlasticOther - 2
Surface protectionEF000139
Choose one value
UntreatedGalvanisedOther - 3
Design formEF022659
Choose one value
T-piece 90° fluentT-piece, 90° right-angledT piece 45°Y-pieceOther - 4
Connection 1EF000321
Choose one value
Duct endInsert endBeaded edgeFlangeOther - 5
Connection 2EF000322
Choose one value
Duct endInsert endBeaded edgeFlangeOther - 6
Connection 3EF020065
Choose one value
Duct endInsert endBeaded edgeFlangeOther - 7
Nominal duct width connection 1EF010181
A number in mm
- 8
Nominal duct width connection 2EF010183
A number in mm
- 9
Nominal duct width connection 3EF011544
A number in mm
- 10
Nominal duct height connection 1EF010182
A number in mm
- 11
Nominal duct height connection 2EF010184
A number in mm
- 12
Nominal duct height connection 3EF011545
A number in mm
- 13
InsulatedEF000019
Yes or no
YesNo - 14
Insulation thicknessEF004810
A number in mm
- 15
Working length connection 1EF020153
A number in mm
- 16
Working length connection 2EF020154
A number in mm
- 17
Working length connection 3EF020160
A number in mm
- 18
Insert lengthEF020279
A number in mm
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
