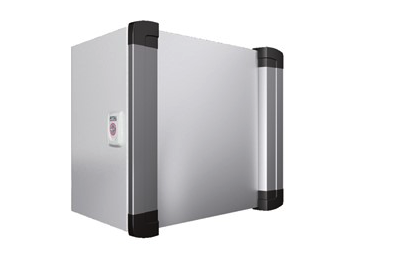

Enclosure, command panel, control system
Code
MC000706Version
1
Group
Electrical - Enclosures and cabinets (MG000008)Release
Drawing
Features
01 | D | Depth (mm) EF000049 - Numeric | |
02 | D1 | Depth 1 (mm) EF010952 - Numeric | |
03 | Di | Diameter (mm) EF000551 - Numeric | |
04 | H | Height (mm) EF000040 - Numeric | |
05 | H1 | Height 1 (mm) EF010005 - Numeric | |
06 | W | Width (mm) EF000008 - Numeric | |
07 | W1 | Width 1 (mm) EF023087 - Numeric |
Related productclasses
Synonyms
Command panel
Command panel cabinet
Command panel housing
Enclosure, command panel, control system
