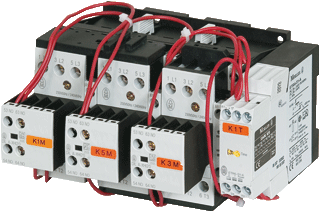

Combination of contactors EC000010
Contactor = Electromagnetic switch for load switching purposes (loads = motors, electric heaters, bigger stacks of luminaires…).
Features 27
- 1
FunctionEF000030
Choose one value
Changeover contactorReversing contactorStar-delta contactorOther - 2
Suitable for rail mountingEF003972
Yes or no
YesNo - 3
Rated control supply voltage AC 50 HzEF003978
A range, from and to, in V
- 4
Rated control supply voltage AC 60 HzEF003979
A range, from and to, in V
- 5
Rated control supply voltage DCEF003980
A range, from and to, in V
- 6
Voltage type for actuatingEF008242
Choose one value
ACDCAC/DC - 7
Number of normally closed contacts (NC) as main contactEF001375
A number
- 8
Number of normally open contacts (NO) as main contactEF001374
A number
- 9
Type of electrical connection of main circuitEF006819
Choose one value
Bolt connectionFlat plug-in connectionPCB connectionScrew connectionSpring clamp connectionOther - 10
Voltage type (operating voltage)EF005294
Choose one value
ACDCAC/DC - 11
Operating voltage AC 50 HzEF008206
A range, from and to, in V
- 12
Operating voltage AC 60 HzEF008207
A range, from and to, in V
- 13
Operating voltage DCEF008208
A range, from and to, in V
- 14
Rated operation current Ie at AC-1, 400 VEF001393
A number in A
- 15
Rated operation current Ie at AC-3, 400 VEF001392
A number in A
- 16
Rated operation power at AC-3, 400 VEF001364
A number in kW
- 17
Rated operation power NEMAEF011960
A number in kW
- 18
Number of auxiliary contacts as normally closed contact (NC)EF001377
A number
- 19
Number of auxiliary contacts as normally open contact (NO)EF001376
A number
- 20
Number of auxiliary contacts as change-over contact (CO)EF003531
A number
- 21
Type of electrical connection for auxiliary- and control current circuitEF006979
Choose one value
Screw connectionSpring clamp connectionOther - 22
Degree of protection (IP)EF005474
Choose one value
IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30 - 23
Degree of protection (NEMA)EF011959
Choose one value
13R44X12Other - 24
WidthEF000008
A number in mm
- 25
HeightEF000040
A number in mm
- 26
DepthEF000049
A number in mm
- 27
Tightening torqueEF005520
A range, from and to, in Nm
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
