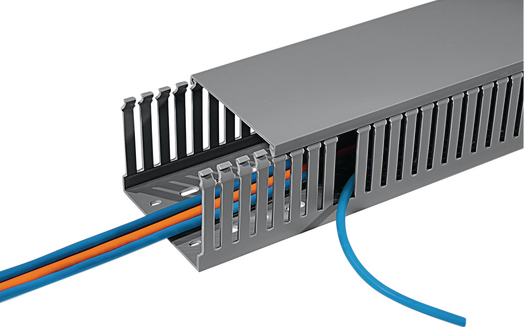

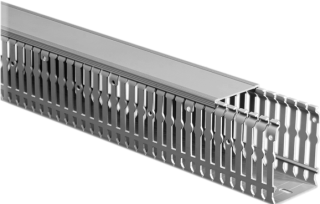

Slotted cable trunking system EC000012

System with breakout-side bars for the wiring installation in a control cabinet and is thus used for the protection and mechanical load relief of the cable.

Published
Cable installation ducts EG021009

Features 16

  1. 1

    MaterialEF002169

    Choose one value

    Acrylonitrile butadiene styrene (ABS)Polycarbonate (PC)/ABSPolyethylene (PE)Polyphenylene oxide (PPO)Polypropylene (PP)Polyvinyl chloride (PVC)Other
  2. 2

    HeightEF000040

    A number in mm

  3. 3

    WidthEF000008

    A number in mm

  4. 4

    LengthEF001438

    A number in mm

  5. 5

    DiameterEF000551

    A number in mm

  6. 6

    Distance of slotsEF005246

    A number in mm

  7. 7

    Slit widthEF005247

    A number in mm

  8. 8

    Type of side wallEF000098

    Choose one value

    SlottedHole-/slot punching
  9. 9

    Halogen freeEF000025

    Yes or no

    YesNo
  10. 10

    Self-extinguishingEF000681

    Yes or no

    YesNo
  11. 11

    FlexibleEF000083

    Yes or no

    YesNo
  12. 12

    Usable cross sectionEF005140

    A number in mm²

  13. 13

    Type of fasteningEF002442

    Choose one value

    Adhesive foilBottom perforationSelf-adhesive and bottom perforation
  14. 14

    With cover/lidEF007965

    Yes or no

    YesNo
  15. 15

    ColourEF000007

    Choose one value

    BeigeBlackBlueBrownGreyOrangeWhiteYellowOther
  16. 16

    RAL-numberEF000116

    A number

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
