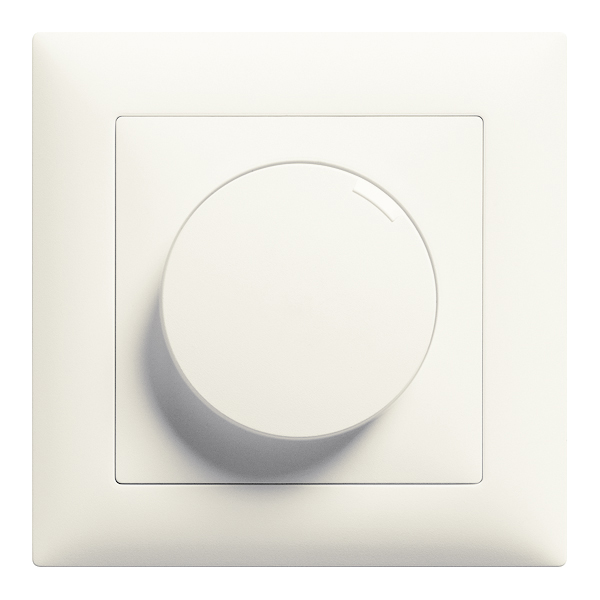

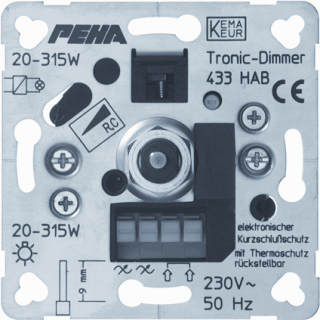

Dimmer EC000025

A device that adjusts the brightness of a connected light source.

Ready for publication
Domestic switching devices EG000013

Features 73

  1. 1

    Assembly arrangementEF000005

    Choose one value

    Basic elementBasic element with adaptor plateBasic element with housing topBasic element with complete housingBasic element with full cover plateBasic element with central cover plateIntermediate plugModular device for domestic switching devicesOther
  2. 2

    Operating methodEF000006

    Choose one value

    InfraredPush buttonRadio frequency (RF)Rocker leverSliding knobTouch control buttonTurn buttonTurn/push buttonOther
  3. 3

    Number of modules (module system)EF009573

    A number

  4. 4

    Number of unitsEF000074

    A number

  5. 5

    Dimming phase cut-on (leading edge)EF012162

    Yes or no

    YesNo
  6. 6

    Dimming phase cut-off (trailing edge)EF012161

    Yes or no

    YesNo
  7. 7

    Serial dimmerEF003889

    Yes or no

    YesNo
  8. 8

    Type of loadEF001508

    Choose one value

    Capacitive loadElectronic ballast 1-10 VElectronic ballast 0/1-10 VInductive loadResistive loadUniversalUniversal and LED RetrofitOther
  9. 9

    Substation inputEF003876

    Yes or no

    YesNo
  10. 10

    Light value memoryEF003867

    Yes or no

    YesNo
  11. 11

    Applicable with buttonEF003910

    Yes or no

    YesNo
  12. 12

    Applicable with movement sensorEF003906

    Yes or no

    YesNo
  13. 13

    Applicable with presence indicatorEF003909

    Yes or no

    YesNo
  14. 14

    Applicable with time switch/timerEF003911

    Yes or no

    YesNo
  15. 15

    Applicable with transmission buttonEF003907

    Yes or no

    YesNo
  16. 16

    Applicable with infrared buttonEF003908

    Yes or no

    YesNo
  17. 17

    Min. brightness controllableEF016708

    Yes or no

    YesNo
  18. 18

    Mounting methodEF000003

    Choose one value

    Built-inDRA (DIN-rail adaptor)Flush-mountedModule frameSurface mountedWall ductOther
  19. 19

    Width in number of modular spacingsEF002950

    A number

  20. 20

    Type of fasteningEF002442

    Choose one value

    Click in mountingGluingMounting with clawMounting with claw and screwMounting with screwOther
  21. 21

    MaterialEF002169

    Choose one value

    GlassMetalPlasticStoneWoodOther
  22. 22

    Material qualityEF001257

    Choose one value

    AluminiumCopperDuroplastSlateStainless steelThermoplasticOther
  23. 23

    Halogen freeEF000025

    Yes or no

    YesNo
  24. 24

    Surface protectionEF000139

    Choose one value

    UntreatedAnodisedDecorLacqueredNano coatedMetallicSand-castGalvanisedOther
  25. 25

    Surface finishingEF006569

    Choose one value

    GlossyMatt
  26. 26

    ColourEF000007

    Choose one value

    AluminiumAnthraciteBeigeBlackBlueBrassBronzeBrownChromeColourless
  27. 27

    RAL-number (similar)EF003882

    A number

  28. 28

    TransparentEF006243

    Yes or no

    YesNo
  29. 29

    Suitable for degree of protection (IP)EF006755

    Choose one value

    IP00IP20IP21IP22IP23IP24IP2XIP30IP31IP32
  30. 30

    Impact strengthEF004293

    Choose one value

    IK00IK01IK02IK03IK04IK05IK06IK07IK08IK09
  31. 31

    Nominal voltageEF005127

    A range, from and to, in V

  32. 32

    FrequencyEF000416

    A range, from and to, in Hz

  33. 33

    Control voltageEF006144

    A range, from and to, in V

  34. 34

    Nominal power resistive loadEF012754

    A range, from and to, in W

  35. 35

    Nominal power inductive loadEF012755

    A range, from and to, in VA

  36. 36

    Nominal power capacitive loadEF012756

    A range, from and to, in VA

  37. 37

    Max. switching power LEDEF015953

    A number in W

  38. 38

    Power consumptionEF000346

    A number in W

  39. 39

    Connection typeEF000124

    Choose one value

    CrimpingInsulation displacement connectorPush-in clampScrewed terminalSolderOther
  40. 40

    Core cross sectionEF007572

    A range, from and to, in mm²

  41. 41

    Neutral conductor requiredEF016448

    Yes or no

    YesNo
  42. 42

    Device widthEF008808

    A number in mm

  43. 43

    Device heightEF008809

    A number in mm

  44. 44

    Device depthEF008810

    A number in mm

  45. 45

    Min. depth of built-in installation boxEF012278

    A number in mm

  46. 46

    Power and energy measurementEF009860

    Yes or no

    YesNo
  47. 47

    Number of channelsEF000259

    A number

  48. 48

    Interface Pulse Width Modulation (PWM)EF016389

    Yes or no

    YesNo
  49. 49

    Number of inputs for switches or buttonsEF027333

    A number

  50. 50

    Wi-FiEF008851

    Yes or no

    YesNo
  51. 51

    BluetoothEF007699

    Yes or no

    YesNo
  52. 52

    App control via BluetoothEF012536

    Yes or no

    YesNo
  53. 53

    Communication medium wiredEF018326

    Yes or no

    YesNo
  54. 54

    Connector (information technology)EF008427

    Choose one value

    RJ12RJ45Other
  55. 55

    With communication interface RS-232EF007312

    Yes or no

    YesNo
  56. 56

    With communication interface RS-485EF007314

    Yes or no

    YesNo
  57. 57

    Bus system KNX/IPEF027336

    Yes or no

    YesNo
  58. 58

    Bus system KNX-RF (Radio Frequency)EF008855

    Yes or no

    YesNo
  59. 59

    Supporting protocol for MatterEF018256

    Yes or no

    YesNo
  60. 60

    Supporting protocol for Modbus TCPEF016392

    Yes or no

    YesNo
  61. 61

    Supporting protocol for MQTTEF017165

    Yes or no

    YesNo
  62. 62

    Supporting protocol for ThreadEF027271

    Yes or no

    YesNo
  63. 63

    Supporting protocol for Z-WaveEF014564

    Yes or no

    YesNo
  64. 64

    Supporting protocol for ZigbeeEF014568

    Yes or no

    YesNo
  65. 65

    Compatible with Amazon AlexaEF014927

    Yes or no

    YesNo
  66. 66

    Compatible with Apple HomeKitEF014925

    Yes or no

    YesNo
  67. 67

    Compatible with Google AssistantEF014926

    Yes or no

    YesNo
  68. 68

    Compatible with HomeyEF027338

    Yes or no

    YesNo
  69. 69

    Compatible with Samsung SmartThingsEF027339

    Yes or no

    YesNo
  70. 70

    Supports local HTTP/HTTPS REST APIEF027355

    Yes or no

    YesNo
  71. 71

    IFTTT support availableEF011072

    Yes or no

    YesNo
  72. 72

    Remote control via cloudEF027342

    Yes or no

    YesNo
  73. 73

    Local control without cloudEF027343

    Yes or no

    YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
