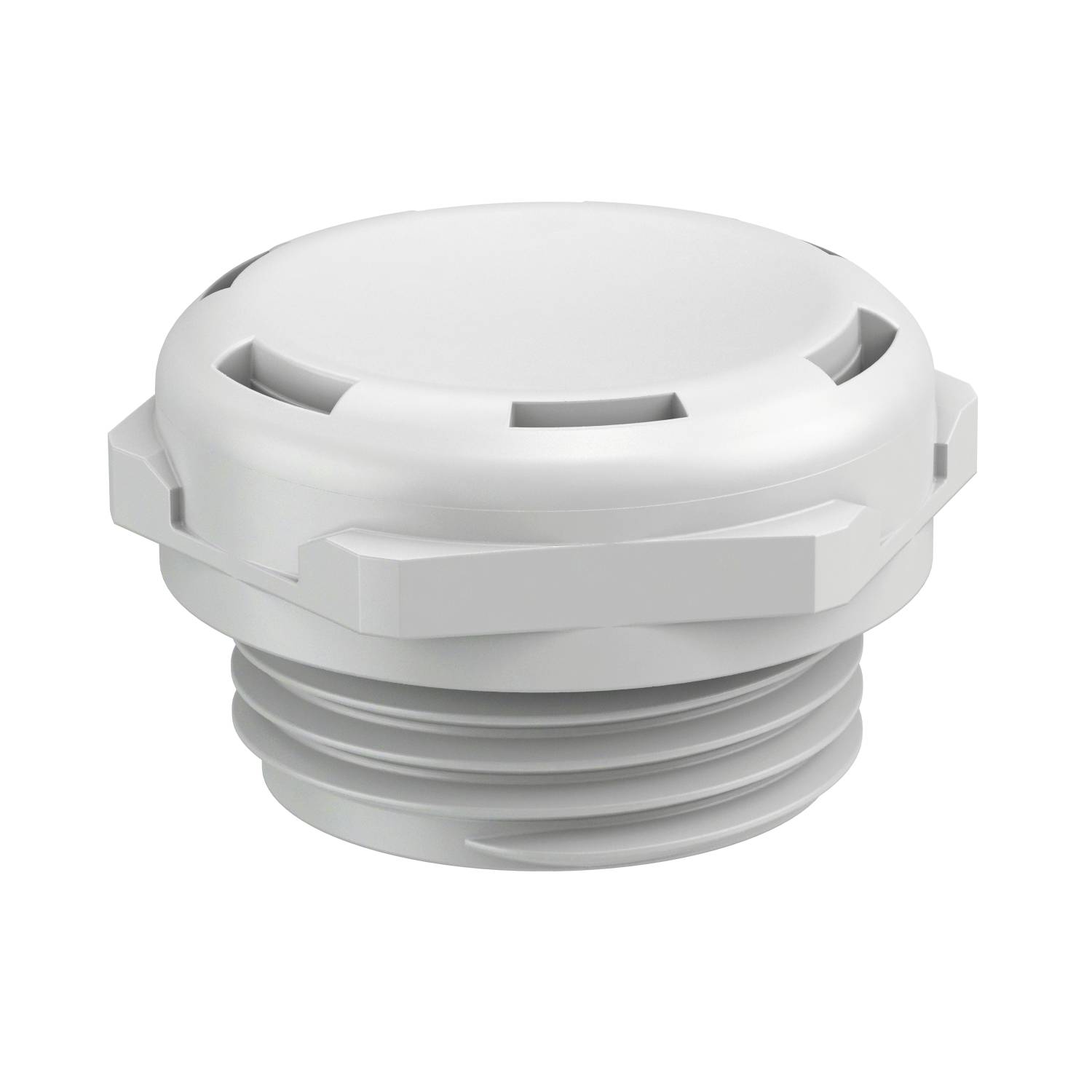

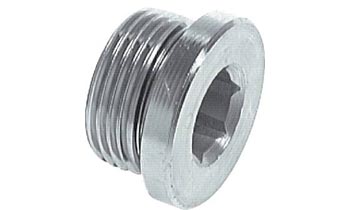

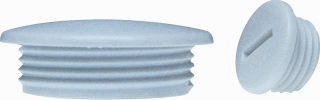

Plug for cable screw gland EC000032

A sealing plug used to close an unused cable gland opening.

Published Installation material for cables and tubes EG000010

/

Changes since v9

Features 17

1
Thread typeEF001758

Choose one value

MetricPGNPTGas-thread
2
Nominal thread size metric/PGEF007839

A number
3
Nominal thread size inch/gas pipe threadEF007838

Choose one value

1/16 inch1/8 inch5/32 inch3/16 inch7/32 inch1/4 inch5/16 inch3/8 inch7/16 inch1/2 inch9/16 inch5/8 inch3/4 inch7/8 inch1 inch1 1/8 inch1 1/4 inch1 3/8 inch1 1/2 inch1 5/8 inch1 3/4 inch2 inch2 1/2 inch2 5/8 inch3 inch3 1/2 inch4 inch5 inch5 1/2 inch6 inch8 inch9 inch11 inch12 inch16 inch20 inchOther
4
Pitch threadEF003712

A number in mm
5
MaterialEF002169

Choose one value

PlasticMetalOther
6
Material qualityEF001257

Choose one value

Aluminium5.6 (steel)Polyamide (PA)Polyethylene (PE)Polystyrene (PS)BrassStainless steel 304 (V2A)Stainless steel 316 (V4A)Stainless steel others (no longer used)Other
7
Surface protectionEF000139

Choose one value

UntreatedChromium-platedGalvanic/electrolytic zinc platedNickel-platedPlastic-coatedOther
8
Halogen freeEF000025

Yes or no

YesNo
9
Glass-fibre reinforcedEF001210

Yes or no

YesNo
10
Shock resistantEF000084

Yes or no

YesNo
11
ColourEF000007

Choose one value

AluminiumBlackBlueBrassChromeGreyNickelOrangeRedStainless steelWhiteZincOther
12
RAL-numberEF000116

A number
13
Explosion-tested versionEF004191

Yes or no

YesNo
14
Suitable for Ex-zone gasEF005728

Choose one value

0, 1, 21, 22None
15
Suitable for Ex-zone dustEF008404

Choose one value

20, 21, 2221, 2222None
16
Working temperatureEF001742

A range, from and to, in °C
17
Pressure-compensatingEF024919

Yes or no

YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
