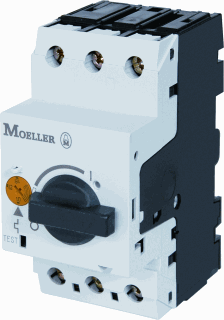

Motor protection circuit-breaker
Code
EC000074Version
Group
Low-voltage control systems (EG020090)Release
DYNAMIC, ETIM-10.0
Features
01 | Overload release current setting (A) EF002336 - Range | |
02 | Adjustment range undelayed short-circuit release (A) EF007131 - Range | |
03 | With thermal overload protection EF006233 - Logical | |
04 | Phase failure sensitive EF007400 - Logical | |
05 | Switch off technique EF007007 - Alphanumeric | |
06 | Rated operating voltage (V) EF001435 - Range | |
07 | Rated permanent current Iu (A) EF001389 - Numeric | |
08 | Rated operation power at AC-3, 230 V (kW) EF007025 - Numeric | |
09 | Rated operation power at AC-3, 400 V (kW) EF001364 - Numeric | |
10 | Power loss (W) EF005387 - Numeric | |
11 | Type of electrical connection of main circuit EF006819 - Alphanumeric | |
12 | Type of control element EF006976 - Alphanumeric | |
13 | Device construction EF008240 - Alphanumeric | |
14 | With integrated auxiliary switch EF001387 - Logical | |
15 | With integrated under voltage release EF001390 - Logical | |
16 | Number of poles EF001391 - Numeric | |
17 | Rated short-circuit breaking capacity Icu at 400 V, AC (kA) EF007049 - Numeric | |
18 | Degree of protection (IP) EF005474 - Alphanumeric | |
19 | Height (mm) EF000040 - Numeric | |
20 | Width (mm) EF000008 - Numeric | |
21 | Depth (mm) EF000049 - Numeric |
Synonyms
Contactor automatic
Instigator
Manual motor starter
MBS
Motor protection circuit-breaker
Motor protection switch
Motor protective circuit-breaker
Motor starter
Power-cut-out switch
Starter
Switch
