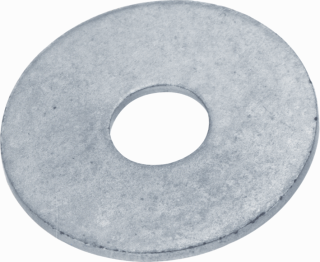

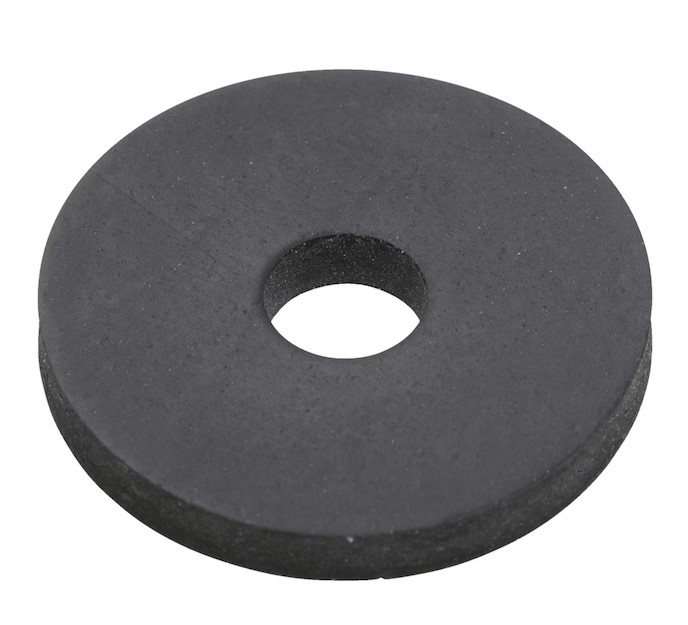

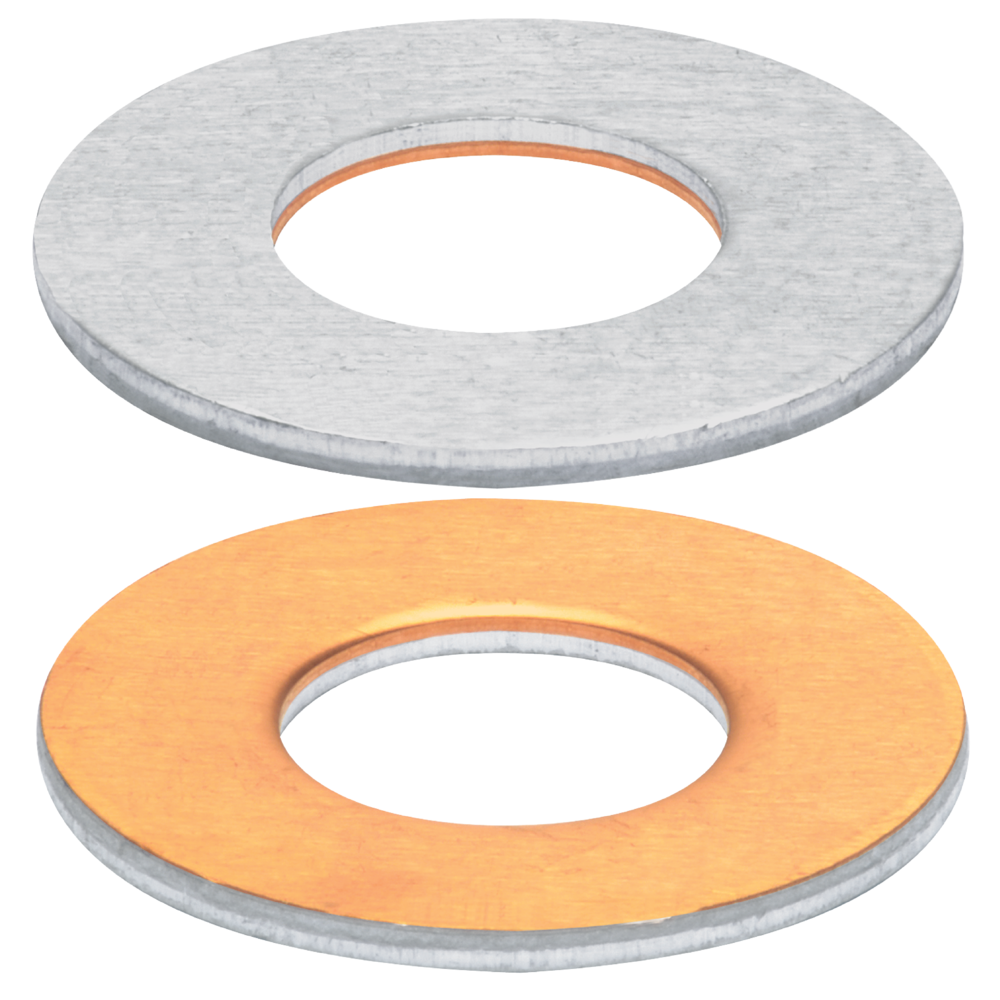

Washer EC000098

A flat disc with a hole in the center used to distribute load in fastening applications.

Ready for publication
Accessories/components for fasteners and anchoring systems EG021006

Features 10

  1. 1

    Inner diameterEF000065

    A number in mm

  2. 2

    Outer diameterEF000015

    A number in mm

  3. 3

    ThicknessEF000125

    A number in mm

  4. 4

    Punch shapeEF001457

    Choose one value

    RoundSquareOther
  5. 5

    MaterialEF002169

    Choose one value

    AluminiumAluminium/copperBrassMalleable cast ironPlasticRubberStainless steelSteelOther
  6. 6

    Material qualityEF001257

    Choose one value

    14H (steel)42CrMo4 (1.7225)AG3 (aluminium)AG5 (aluminium)C45 (steel)CuZn40Pb2 (CW617N)Ethylene-propylene diene monomer rubber (EPDM)Polyamide (PA) 6Polyamide (PA) 6.6Polystyrene (PS)
  7. 7

    Surface protectionEF000139

    Choose one value

    AnodisedBrass-platedGalvanic/electrolytic zinc platedHot-dip galvanisedZinc/nickelOtherUntreated
  8. 8

    Suitable for bolt size (metric)EF003566

    A number

  9. 9

    HardenedEF004739

    Yes or no

    YesNo
  10. 10

    ChamferedEF001586

    Yes or no

    YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
