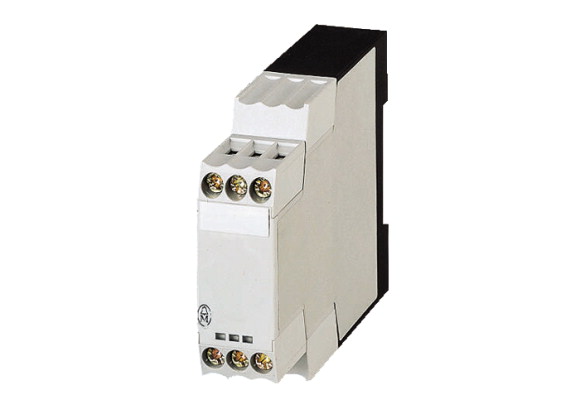

Amplifier module for contactor EC000198
Contactor = Electromagnetic switch for load switching purposes (loads = motors, electric heaters, bigger stacks of luminaires…).
Features 15
- 1
Type of set-upEF008221
Choose one value
Direct attachmentSeparate positioningOther - 2
Rated control supply voltage AC 50 HzEF003978
A range, from and to, in V
- 3
Rated control supply voltage AC 60 HzEF003979
A range, from and to, in V
- 4
Rated control supply voltage DCEF003980
A range, from and to, in V
- 5
Voltage type for actuatingEF008242
Choose one value
ACDCAC/DC - 6
With integrated suppressorEF001384
Yes or no
YesNo - 7
Voltage type (operating voltage)EF005294
Choose one value
ACDCAC/DC - 8
Operating voltage AC 50 HzEF008206
A range, from and to, in V
- 9
Operating voltage AC 60 HzEF008207
A range, from and to, in V
- 10
Operating voltage DCEF008208
A range, from and to, in V
- 11
Rated operation current Ie at DC-13, 230 VEF001386
A number in A
- 12
Rated operation current Ie at AC-15, 230 VEF001385
A number in A
- 13
WidthEF000008
A number in mm
- 14
HeightEF000040
A number in mm
- 15
DepthEF000049
A number in mm
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
