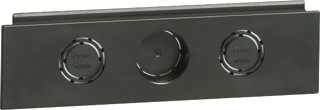

Gland plate for enclosure/cabinet EC000211

A plate used to secure and organize cable entry points in electrical enclosures or cabinets.

Ready for publication Enclosures/cabinets EG000011

/

Changes since v9

Features 15

1
ModelEF000010

Choose one value

BlindBrushCable entry foamCable screw glandConnectorMembranePipeSocket outlet with protective contact CEE 7/3 (type F)Other
2
TypeEF001139

Choose one value

Straight45°-elbow90°-elbowOther
3
WidthEF000008

A number in mm
4
HeightEF000040

A number in mm
5
ThicknessEF000125

A number in mm
6
MaterialEF002169

Choose one value

AluminiumRubberBrassPlasticSteelStainless steelOther
7
Surface protectionEF000139

Choose one value

PrimedLacqueredPowder coatingGalvanisedUntreated
8
Degree of protection (IP)EF005474

Choose one value

IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30IP31IP32IP33IP34IP3XIP40IP41IP42IP43IP44IP45IP50IP52IP53IP54IP55IP56IP57IP58IP64IP65IP66IP66/IP67/IP69IP67IP67KIP68IP69IP69KIPX0IPX4IPX7Other
9
Degree of protection (NEMA)EF011959

Choose one value

133R44XOther
10
Pre-stampingEF001039

Yes or no

YesNo
11
Number of connector holesEF005554

A number
12
Suitable for cable diameterEF005466

A range, from and to, in mm
13
Thread typeEF001758

Choose one value

MetricPGNPTGas-threadNone
14
Suitable for nominal thread metric/PGEF012565

A range, from and to
15
Gland plate type according to SEN 280901EFSE0006

Choose one value

FL7FL9FL13FL15FL21FL28FL33

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
