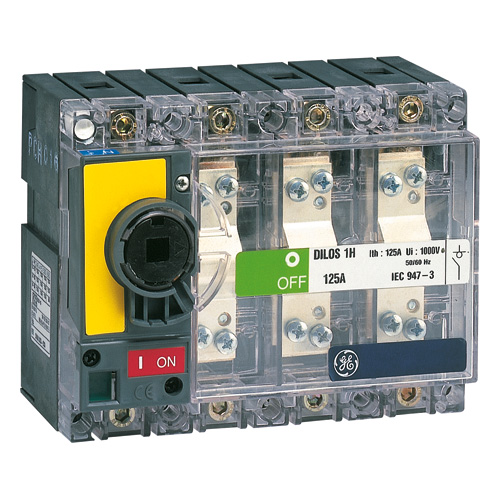

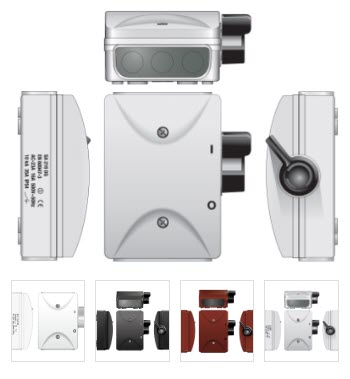

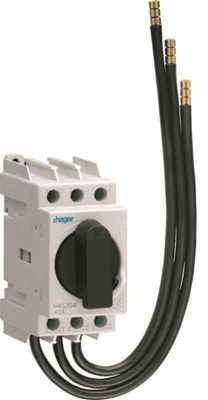

Switch disconnector (AC)
Code
EC000216Version
Group
Low-voltage control systems (EG020090)Release
ETIM-10.0
Features
01 | Version as main switch EF006981 - Logical | |
02 | Version as maintenance-/service switch EF006986 - Logical | |
03 | Version as safety switch EF006985 - Logical | |
04 | Version as emergency stop installation EF006959 - Logical | |
05 | Version as reversing switch EF009408 - Logical | |
06 | Number of switches EF005586 - Numeric | |
07 | Max. rated operation voltage Ue AC (V) EF007355 - Numeric | |
08 | Rated operating voltage (V) EF001435 - Range | |
09 | Rated permanent current Iu (A) EF001389 - Numeric | |
10 | Rated permanent current at AC-23, 400 V (A) EF011777 - Numeric | |
11 | Rated permanent current at AC-21, 400 V (A) EF009165 - Numeric | |
12 | Rated operation power at AC-3, 400 V (kW) EF001364 - Numeric | |
13 | Rated short-time withstand current lcw (kA) EF007050 - Numeric | |
14 | Rated operation power at AC-23, 400 V (kW) EF007027 - Numeric | |
15 | Switching power at 400 V (kW) EF009166 - Numeric | |
16 | Conditioned rated short-circuit current Iq (kA) EF001444 - Numeric | |
17 | Number of poles EF001391 - Numeric | |
18 | Number of auxiliary contacts as normally closed contact EF001377 - Numeric | |
19 | Number of auxiliary contacts as normally open contact EF001376 - Numeric | |
20 | Number of auxiliary contacts as change-over contact EF003531 - Numeric | |
21 | Motor drive optional EF007386 - Logical | |
22 | Motor drive integrated EF006697 - Logical | |
23 | Voltage release optional EF007491 - Logical | |
24 | Device construction EF008240 - Alphanumeric | |
25 | Suitable for floor mounting EF025108 - Logical | |
26 | Suitable for front mounting 4-hole EF007247 - Logical | |
27 | Suitable for front mounting centre EF007248 - Logical | |
28 | Suitable for distribution board installation EF007262 - Logical | |
29 | Suitable for intermediate mounting EF007264 - Logical | |
30 | Colour control element EF007167 - Alphanumeric | |
31 | Type of control element EF006976 - Alphanumeric | |
32 | Interlockable EF006281 - Logical | |
33 | Housing material EF001596 - Alphanumeric | |
34 | Housing colour EF000136 - Alphanumeric | |
35 | Type of electrical connection of main circuit EF006819 - Alphanumeric | |
36 | With pre-assembled cabling EF016444 - Logical | |
37 | Degree of protection (IP), front side EF003118 - Alphanumeric | |
38 | Degree of protection (NEMA) EF011959 - Alphanumeric | |
39 | Width (mm) EF000008 - Numeric | |
40 | Height (mm) EF000040 - Numeric | |
41 | Depth (mm) EF000049 - Numeric | |
42 | Width in number of modular spacings EF002950 - Numeric |
Synonyms
Control switch
Fuse switch disconnector
Group switch
Load switch
Main switch
Maintenance switch
Master switch
Motor switch
Off-load switch
On / off switch
On/off switch
Operation switch
Power splitter
Reverser
Rotary toggle
Safety switch
Switch
Switch disconnector
Switch disconnector (AC)
Switch disconnector (AC, low voltage)
Switch disconnector (low voltage)
Turn switch
