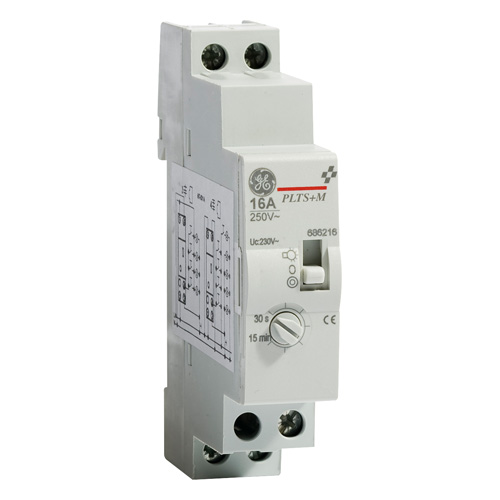

Staircase lighting timer
Code
EC000297Version
Group
Devices for distribution board-/surface mounting (EG000062)Release
DYNAMIC, ETIM-9.0, ETIM-10.0
Features
01 | Function EF000030 - Alphanumeric | |
02 | Mounting method EF000003 - Alphanumeric | |
03 | Width in number of modular spacings EF002950 - Numeric | |
04 | Built-in depth (mm) EF000218 - Numeric | |
05 | Number of contacts as normally open contact EF008256 - Numeric | |
06 | Number of contacts as normally closed contact EF008255 - Numeric | |
07 | Number of contacts as change-over contact EF008257 - Numeric | |
08 | Control voltage 1 (V) EF002952 - Range | |
09 | Type of control voltage 1 EF002954 - Alphanumeric | |
10 | Frequency control voltage 1 (Hz) EF002956 - Range | |
11 | Control voltage 2 (V) EF002953 - Range | |
12 | Type of control voltage 2 EF002955 - Alphanumeric | |
13 | Frequency control voltage 2 (Hz) EF002957 - Range | |
14 | Rated switch current (A) EF006706 - Numeric | |
15 | Max. switching current (cos phi = 0.6) (A) EF004920 - Numeric | |
16 | Release-delay (min) EF001129 - Range | |
17 | Push button glow-lamp current (mA) EF006707 - Numeric | |
18 | Wiring system EF002960 - Alphanumeric | |
19 | Pre-warning of switching-off EF002961 - Alphanumeric | |
20 | Current surge function selectable EF008074 - Logical | |
21 | Repetitive EF002962 - Alphanumeric | |
22 | Supply voltage (V) EF004127 - Range | |
23 | Voltage type (supply voltage) EF002991 - Alphanumeric | |
24 | Max. incandescent lamp load (W) EF004952 - Numeric | |
25 | Max. load fluorescent lamp (VA) EF004971 - Numeric | |
26 | Max. load fluorescent lamp (Duo circuit) (VA) EF004972 - Numeric | |
27 | Max. load fluorescent lamp (parallel compensated) (VA) EF004973 - Numeric | |
28 | Max. switching power LED (W) EF015953 - Numeric | |
29 | Power consumption (W) EF000346 - Numeric |
Synonyms
Built-in device
Mini circuit breaker
Relay
Staircase lighting timer
Time switch
Time switch clock
Timer clock
Timer relay
