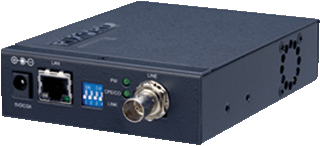

Data switch EC000312

A device that manages and directs data traffic between networked devices.

Published
Installation material for data and telecommunication networks EG000037

Features 7

  1. 1

    ModelEF000010

    Choose one value

    Automatic T-SwitchAutomatic/manual T-SwitchManual T-SwitchManual T-Switch/X-SwitchManual X-SwitchMonitor/keyboard T-switchOther
  2. 2

    Number of inputsEF000318

    A number

  3. 3

    Connection inputEF015577

    Choose one value

    21-pole ScartBNCCentronics 35-poleD-Sub 9-poleD-Sub 15-poleD-Sub 25-poleD-Sub 36-poleD-Sub/Centronics 25-poleDIN 5-poleHD-D-Sub 15-poleOther
  4. 4

    Number of outputsEF000319

    A number

  5. 5

    Connection outputEF015579

    Choose one value

    21-pole ScartBNCCentronics 35-poleD-Sub 9-poleD-Sub 15-poleD-Sub 25-poleD-Sub 36-poleDIN 5-poleHD-D-Sub 15-polePS 2
  6. 6

    Separate power supplyEF000579

    Yes or no

    YesNo
  7. 7

    Time-outEF000578

    A number in s

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
