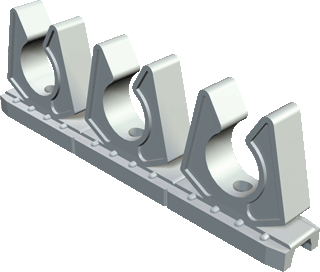

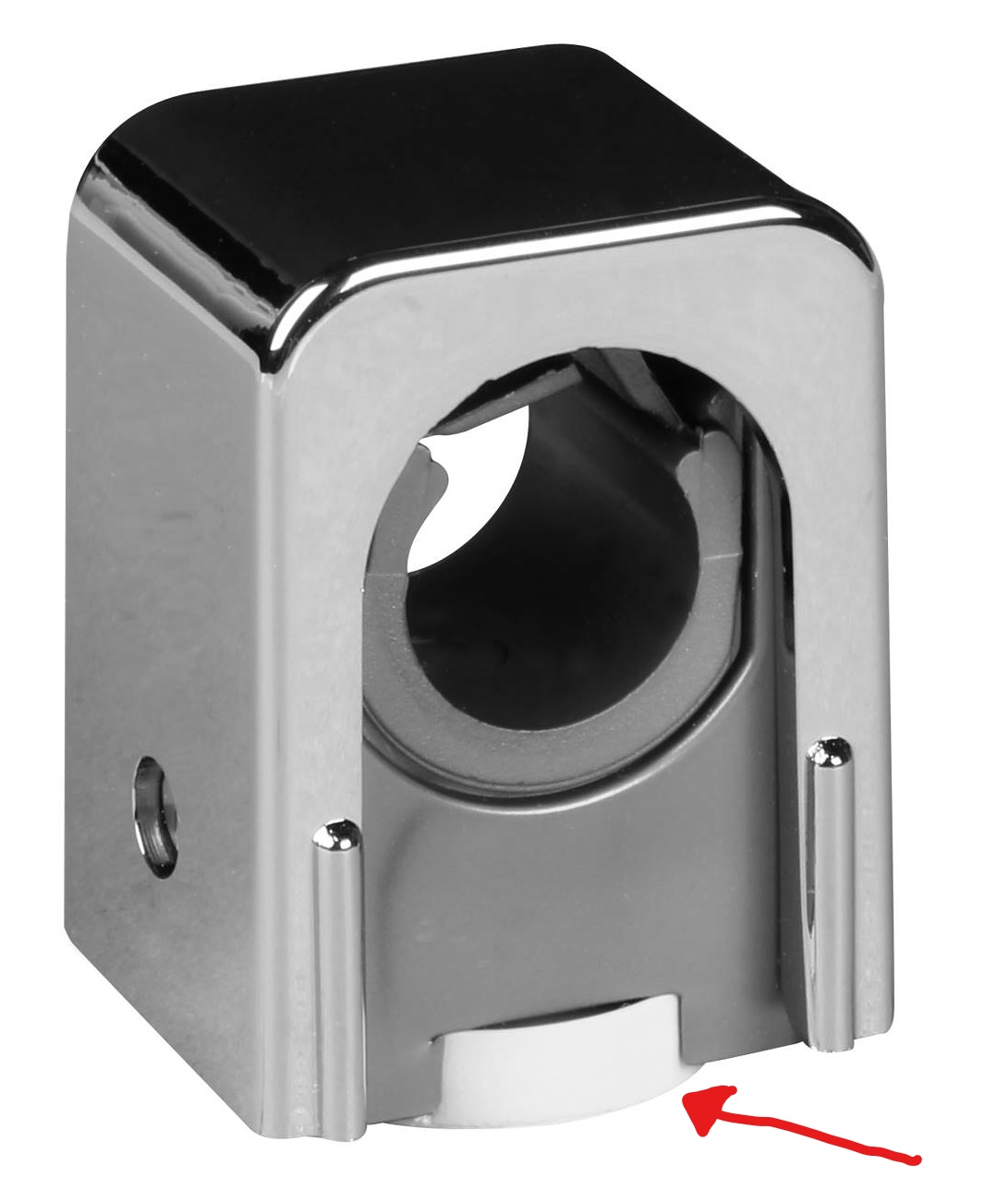

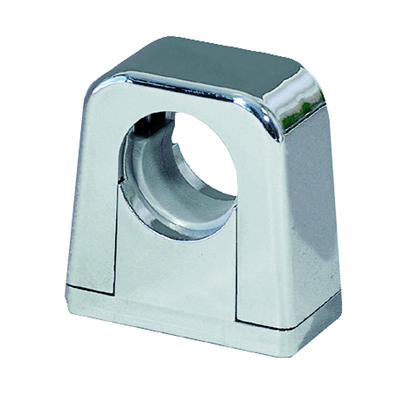

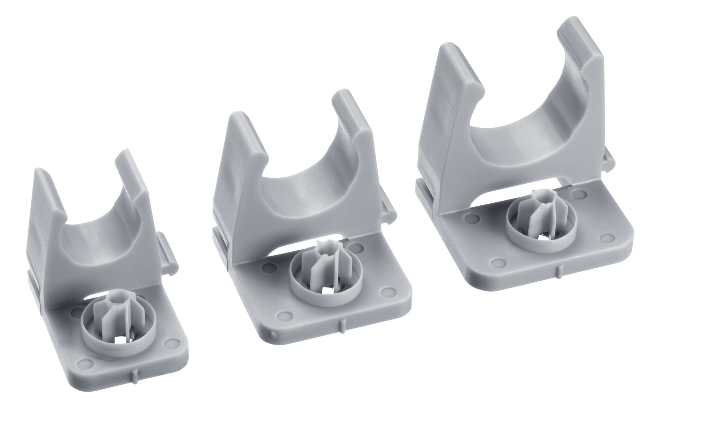

Tube clamp EC000368
A device used to fasten and secure tubes or pipes.
Published
Installation material for cables and tubes EG000010
Features 14
- 1
Suitable for pipe diameterEF002390
A range, from and to, in mm
- 2
ClosedEF001228
Yes or no
YesNo - 3
Suitable for protective hosesEF012609
Yes or no
YesNo - 4
MaterialEF002169
Choose one value
AluminiumBrassCopperPlasticStainless steelSteelOther - 5
Material qualityEF001257
Choose one value
Acrylonitrile butadiene styrene (ABS)High-density polyethylene (HDPE)Polyamide (PA)Polycarbonate (PC)Polyethylene (PE)Polypropylene (PP)Polyvinyl chloride (PVC)Stainless steel 304 (V2A)Stainless steel 316 (V4A)Other - 6
Surface protectionEF000139
Choose one value
UntreatedChromium-platedContinuously galvanisedGalvanic/electrolytic zinc platedHot-dip galvanisedNickel-platedOther - 7
ConnectableEF006169
Yes or no
YesNo - 8
Max. number of tubesEF001225
A number
- 9
Type of fasteningEF002442
Choose one value
ClampGlueNail gun fasteningNutMoulded-on push fit plugMoulded-on push fit plug (double)RailScrew holeSelf-adhesiveSteel nail - 10
With inlayEF005913
Yes or no
YesNo - 11
With wall gasketEF015949
Yes or no
YesNo - 12
ColourEF000007
Choose one value
AluminiumBlackBlueBrassBrownChromeColourlessCopperGreyNickel - 13
Working temperatureEF001742
A range, from and to, in °C
- 14
Halogen freeEF000025
Yes or no
YesNo
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
